Description

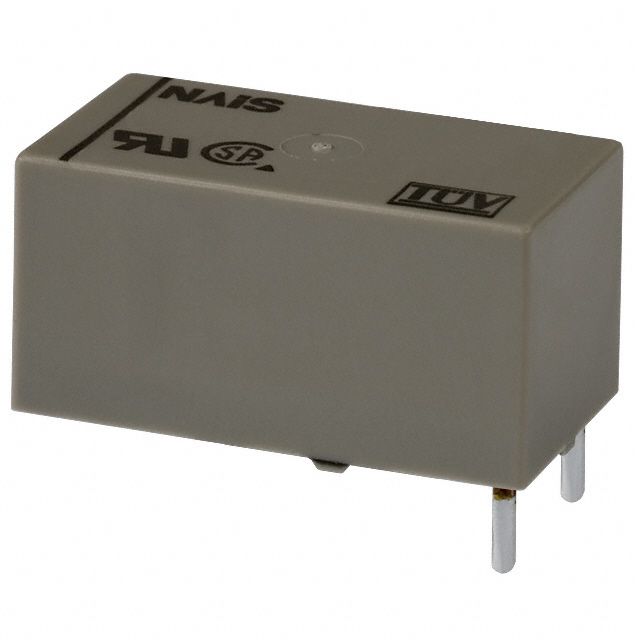

Complies with the criteria of entities acknowledged as cURus, VDE. Supports coil current measured at 25 mA. Designed with a coil type classified as Latching, Dual Coil for optimal electrical efficiency. Operates with a coil voltage of 12VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Constructed from the contact material known as Silver Tin Oxide (AgSnO). Supports a contact current rating of 8 A. The maximum switching load 2000VA, 1000W for enhanced circuit performance. Mounting configuration Through Hole for structural stability. Needs a voltage of 9.6 VDC for effective activation. Time duration 10 ms for the response upon activation. Temperature range -40°C ~ 60°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 5 ms for reset and reaction. Ingress protection level Sealed - Fully for sealing. Classification series for the product or component DSP. The switch's voltage specification 250VAC, 125VDC - Max as per electrical regulations. Type of termination PC Pin for connector or device.
