Description

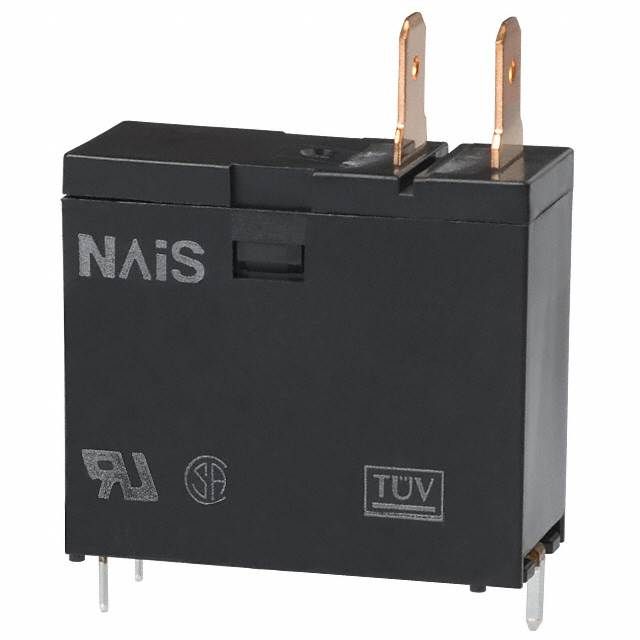

Complies with the criteria of entities acknowledged as CSA, TUV, UR, VDE. Supports coil current measured at 22.2 mA. Includes coil insulation rated at Class B to ensure thermal and electrical reliability. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 9VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Constructed from the contact material known as Silver Tin Oxide (AgSnO). Supports a contact current rating of 16 A. The maximum switching load 4432VA for enhanced circuit performance. Mounting configuration Through Hole for structural stability. Needs a voltage of 6.75 VDC for effective activation. Requires a release voltage of 0.45 VDC for reliable functioning. Time duration 20 ms for the response upon activation. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Product status Not For New Designs concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 25 ms for reset and reaction. Classification series for the product or component ALE. The switch's voltage specification 277VAC - Max as per electrical regulations. Type of termination PC Pin for connector or device.
