Stock:
Distributor: 114
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 1,689.22000 | ₹ 1,689.22 |
| 9 | ₹ 1,559.28000 | ₹ 14,033.52 |
| 22 | ₹ 1,490.75000 | ₹ 32,796.50 |
| 44 | ₹ 1,448.03000 | ₹ 63,713.32 |
| 88 | ₹ 1,407.98000 | ₹ 1,23,902.24 |
| 176 | ₹ 1,351.91000 | ₹ 2,37,936.16 |

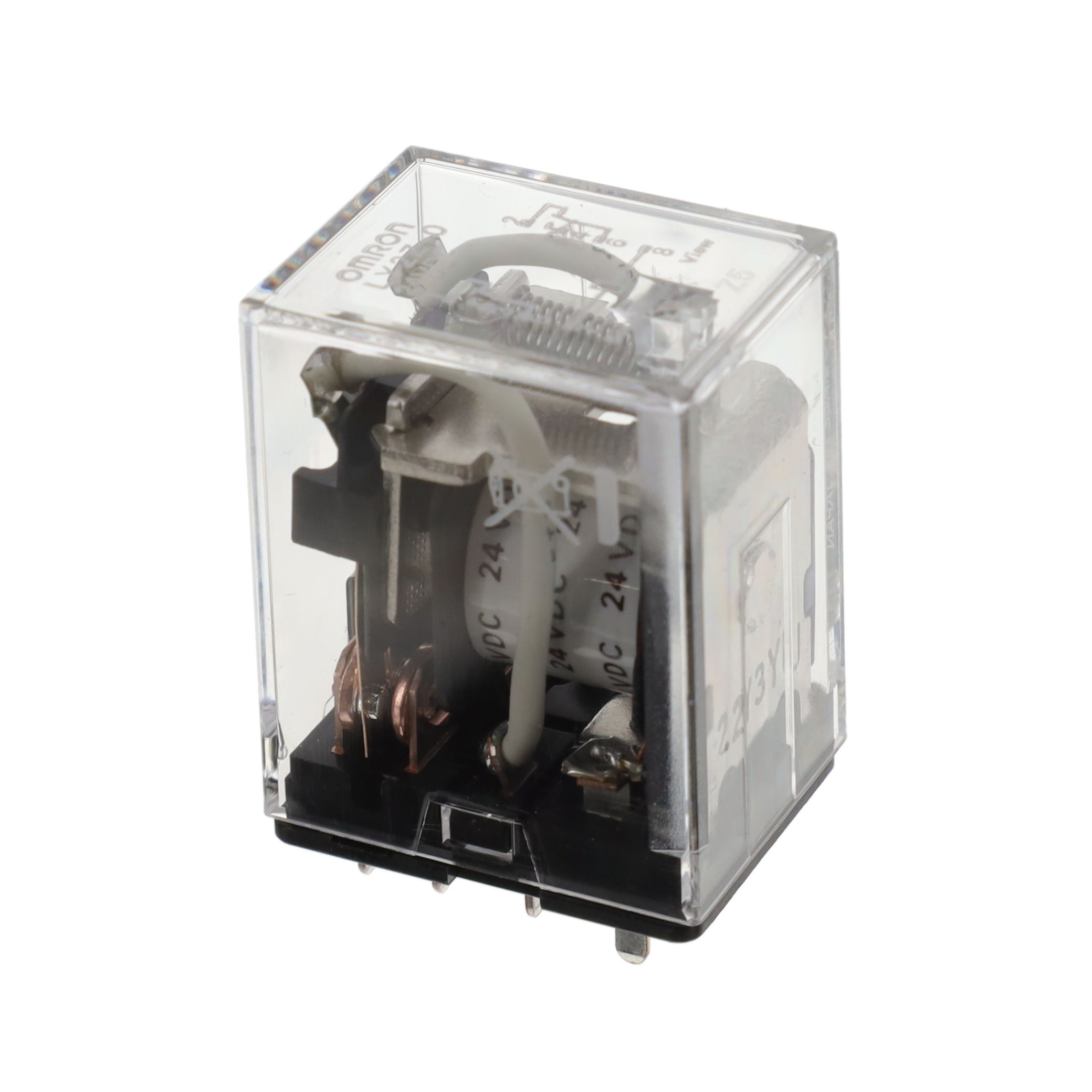

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | LY | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Attachment Mounting Style | Through Hole | |
| Inductor Operating Volts | 24VDC | |
| Switch Contact Layout | DPDT (2 Form C) | |
| Pin Ampere Capacity | 5 A | |
| Switch Rated Volts | 250VAC, 125VDC - Max | |
| Maximum Switch Load | 1250VA, 625W | |
| Electromagnet Amp Draw | 36.9 mA | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | - | |
| Lead Termination Type | PC Pin | |
| Sealing Protection Grade | - | |
| Wire Coil Cover | - | |
| Minimum Activation Volts | 19.2 VDC | |
| Release Voltage Level | 2.4 VDC | |
| Activation Response Time | 25 ms | |
| Reset Response Duration | 25 ms | |
| Ambient Temp Range | -25°C ~ 55°C | |
| Pin Alloy Composition | Silver Alloy | |
| Certification Body | CE, CSA, TUV, UR | |
| Electromechanical Relay Style | General Purpose | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Complies with the criteria of entities acknowledged as CE, CSA, TUV, UR. Supports coil current measured at 36.9 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 24VDC for reliable functionality. Utilizes a contact configuration categorized as DPDT (2 Form C). Constructed from the contact material known as Silver Alloy. Supports a contact current rating of 5 A. The maximum switching load 1250VA, 625W for enhanced circuit performance. Mounting configuration Through Hole for structural stability. Needs a voltage of 19.2 VDC for effective activation. Requires a release voltage of 2.4 VDC for reliable functioning. Time duration 25 ms for the response upon activation. Temperature range -25°C ~ 55°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 25 ms for reset and reaction. Classification series for the product or component LY. The switch's voltage specification 250VAC, 125VDC - Max as per electrical regulations. Type of termination PC Pin for connector or device.
