Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | ISO | |
| IC Encapsulation Type | Box | |
| Attachment Mounting Style | Chassis Mount | |
| Inductor Operating Volts | 120VAC | |
| Switch Contact Layout | SPST-NO (1 Form A) | |
| Pin Ampere Capacity | 5 A | |
| Switch Rated Volts | 120VAC - Nom | |
| Maximum Switch Load | - | |
| Electromagnet Amp Draw | - | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | - | |
| Lead Termination Type | Screw Terminal | |
| Sealing Protection Grade | Sealed - Fully | |
| Wire Coil Cover | - | |
| Minimum Activation Volts | - | |
| Release Voltage Level | - | |
| Activation Response Time | 6 ms | |
| Reset Response Duration | 2.5 ms | |
| Ambient Temp Range | -20°C ~ 55°C | |
| Pin Alloy Composition | - | |
| Certification Body | UL | |
| Electromechanical Relay Style | General Purpose | |
| Quality Grade Level | - | |
| Certification Qualification | - |

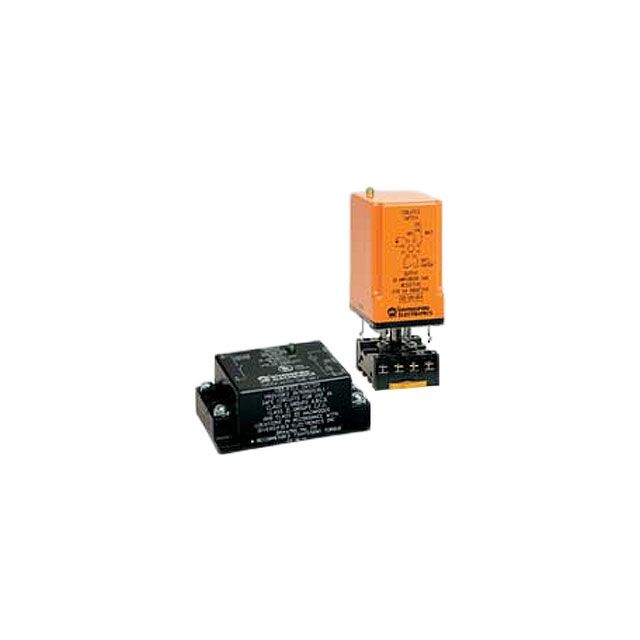

Description
Complies with the criteria of entities acknowledged as UL. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 120VAC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Supports a contact current rating of 5 A. Mounting configuration Chassis Mount for structural stability. Time duration 6 ms for the response upon activation. Temperature range -20°C ~ 55°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Configuration of relay General Purpose for controlling electrical circuits. Duration required 2.5 ms for reset and reaction. Ingress protection level Sealed - Fully for sealing. Classification series for the product or component ISO. The switch's voltage specification 120VAC - Nom as per electrical regulations. Type of termination Screw Terminal for connector or device.
