Description

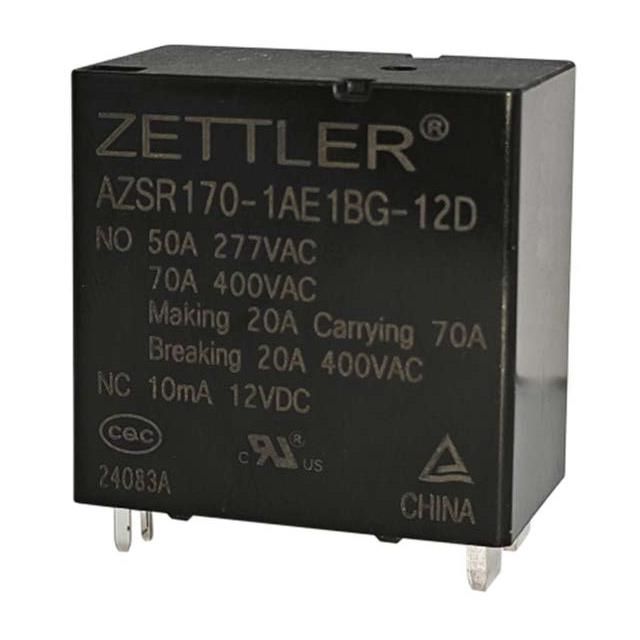

Complies with the criteria of entities acknowledged as CQC, cURus, TUV. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supports coil current measured at 205.8 mA. Includes coil insulation rated at Class F to ensure thermal and electrical reliability. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 12VDC for reliable functionality. Utilizes a contact configuration categorized as DPST-NO/NC (1 Form A, 1 Form B). Constructed from the contact material known as Silver Tin Oxide (AgSnO). Supports a contact current rating of 70 A. The maximum switching load 42000VA for enhanced circuit performance. Mounting configuration Through Hole for structural stability. Needs a voltage of 8.4 VDC for effective activation. Requires a release voltage of 4.8 VDC for reliable functioning. Time duration 20 ms for the response upon activation. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 10 ms for reset and reaction. Ingress protection level Sealed - Flux Protection for sealing. Classification series for the product or component AZSR170. The switch's voltage specification 600VAC - Max as per electrical regulations. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type of termination PC Pin for connector or device. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
