Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

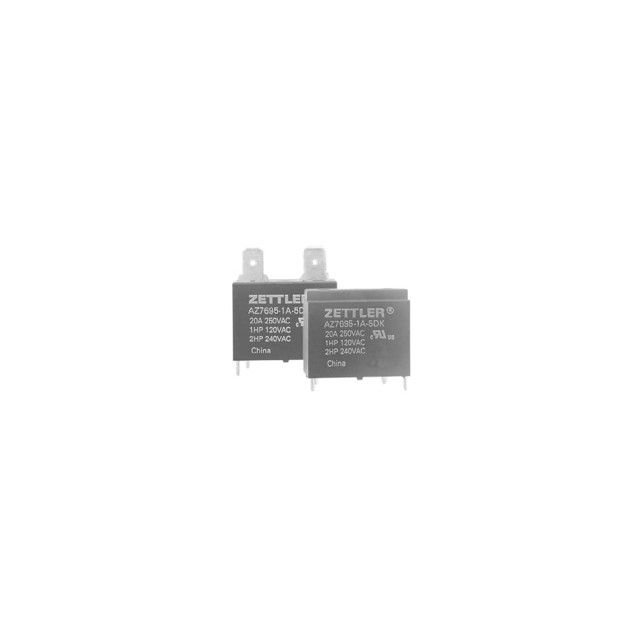

| Product Series Line | AZ7695 | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Attachment Mounting Style | Through Hole | |
| Inductor Operating Volts | 12VDC | |
| Switch Contact Layout | SPST-NO (1 Form A) | |
| Pin Ampere Capacity | 25 A | |
| Switch Rated Volts | 250VAC, 30VDC - Max | |
| Maximum Switch Load | 6250VA | |
| Electromagnet Amp Draw | 75 mA | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | - | |
| Lead Termination Type | PC Pin, Quick Connect - 0.250" (6.3mm) | |
| Sealing Protection Grade | Sealed - Flux Protection | |
| Wire Coil Cover | - | |
| Minimum Activation Volts | 8.4 VDC | |
| Release Voltage Level | 1.2 VDC | |
| Activation Response Time | 20 ms | |
| Reset Response Duration | 10 ms | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Pin Alloy Composition | Silver Tin Oxide (AgSnO) | |
| Certification Body | CUR, TUV, UL | |
| Electromechanical Relay Style | General Purpose | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Complies with the criteria of entities acknowledged as CUR, TUV, UL. Supports coil current measured at 75 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 12VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Constructed from the contact material known as Silver Tin Oxide (AgSnO). Supports a contact current rating of 25 A. The maximum switching load 6250VA for enhanced circuit performance. Mounting configuration Through Hole for structural stability. Needs a voltage of 8.4 VDC for effective activation. Requires a release voltage of 1.2 VDC for reliable functioning. Time duration 20 ms for the response upon activation. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 10 ms for reset and reaction. Ingress protection level Sealed - Flux Protection for sealing. Classification series for the product or component AZ7695. The switch's voltage specification 250VAC, 30VDC - Max as per electrical regulations. Type of termination PC Pin, Quick Connect - 0.250" (6.3mm) for connector or device.
