Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

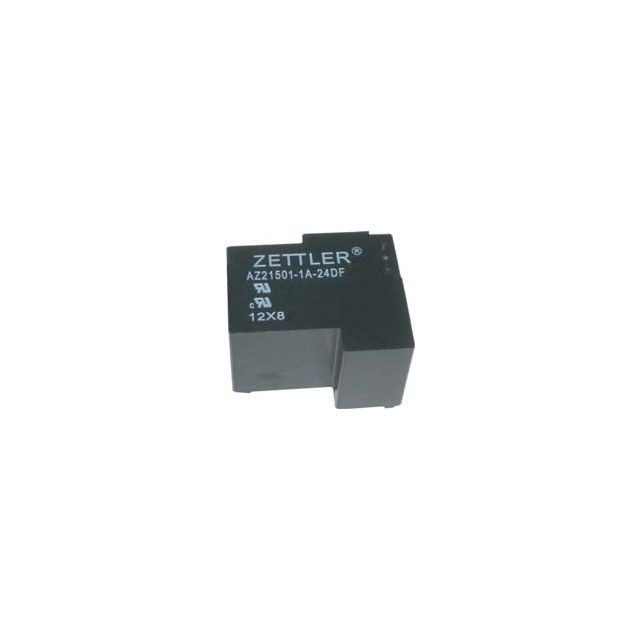

| Product Series Line | AZ21501 | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Attachment Mounting Style | Through Hole | |
| Inductor Operating Volts | 12VDC | |
| Switch Contact Layout | SPST-NO (1 Form A) | |
| Pin Ampere Capacity | 50 A | |
| Switch Rated Volts | 300VAC, 110VDC - Max | |
| Maximum Switch Load | 7200VA, 1200W | |
| Electromagnet Amp Draw | 75 mA | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | - | |
| Lead Termination Type | PC Pin | |
| Sealing Protection Grade | Sealed - Fully | |
| Wire Coil Cover | Class B | |
| Minimum Activation Volts | 9 VDC | |
| Release Voltage Level | 1.2 VDC | |
| Activation Response Time | 15 ms | |
| Reset Response Duration | 10 ms | |
| Ambient Temp Range | -55°C ~ 100°C | |
| Pin Alloy Composition | Silver Cadmium Oxide (AgCdO) | |
| Certification Body | CUR, UL, TUV | |
| Electromechanical Relay Style | General Purpose | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Complies with the criteria of entities acknowledged as CUR, UL, TUV. Supports coil current measured at 75 mA. Includes coil insulation rated at Class B to ensure thermal and electrical reliability. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 12VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Constructed from the contact material known as Silver Cadmium Oxide (AgCdO). Supports a contact current rating of 50 A. The maximum switching load 7200VA, 1200W for enhanced circuit performance. Mounting configuration Through Hole for structural stability. Needs a voltage of 9 VDC for effective activation. Requires a release voltage of 1.2 VDC for reliable functioning. Time duration 15 ms for the response upon activation. Temperature range -55°C ~ 100°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 10 ms for reset and reaction. Ingress protection level Sealed - Fully for sealing. Classification series for the product or component AZ21501. The switch's voltage specification 300VAC, 110VDC - Max as per electrical regulations. Type of termination PC Pin for connector or device.
