Description

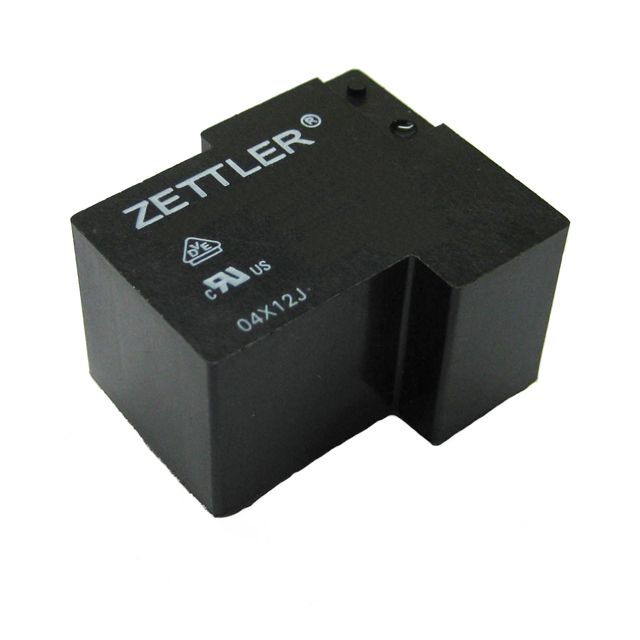

Complies with the criteria of entities acknowledged as cURus, VDE. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supports coil current measured at 36.4 mA. Includes coil insulation rated at Class F to ensure thermal and electrical reliability. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 24VDC for reliable functionality. Utilizes a contact configuration categorized as SPDT (1 Form C). Constructed from the contact material known as Silver Cadmium Oxide (AgCdO). Supports a contact current rating of 40 A. The maximum switching load 12000VA, 1200W for enhanced circuit performance. Mounting configuration Through Hole for structural stability. Needs a voltage of 18 VDC for effective activation. Requires a release voltage of 2.4 VDC for reliable functioning. Time duration 12 ms for the response upon activation. Temperature range -55°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 5 ms for reset and reaction. Ingress protection level Sealed - Fully for sealing. Classification series for the product or component AZ2150. The switch's voltage specification 300VAC, 30VDC - Max as per electrical regulations. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type of termination PC Pin for connector or device. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
