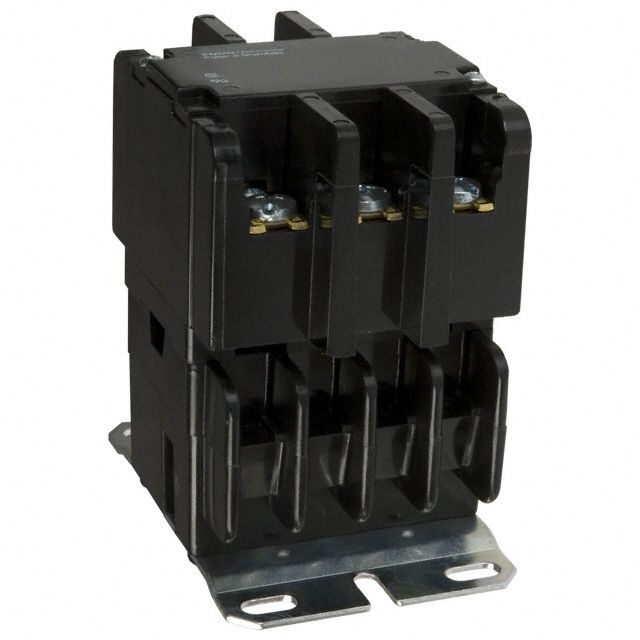

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | P30 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Attachment Mounting Style | Chassis Mount | |
| Inductor Operating Volts | 120VAC | |
| Switch Contact Layout | 3PST-NO (DM) (3 Form X) | |
| Pin Ampere Capacity | 30 A | |
| Switch Rated Volts | 600VAC - Max | |
| Key Product Highlights | - | |
| Lead Termination Type | Screw Terminal, Quick Connect - 0.250" (6.3mm) | |
| Ambient Temp Range | -55°C ~ 65°C | |
| Minimum Activation Volts | 94 VAC | |
| Release Voltage Level | - |
Description
Operates with a coil voltage of 120VAC for reliable functionality. Utilizes a contact configuration categorized as 3PST-NO (DM) (3 Form X). Supports a contact current rating of 30 A. Mounting configuration Chassis Mount for structural stability. Needs a voltage of 94 VAC for effective activation. Temperature range -55°C ~ 65°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component P30. The switch's voltage specification 600VAC - Max as per electrical regulations. Type of termination Screw Terminal, Quick Connect - 0.250" (6.3mm) for connector or device.
