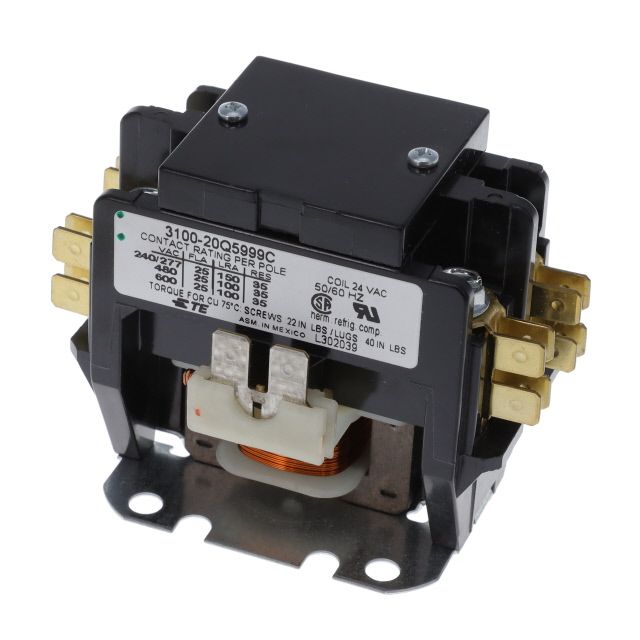

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 3100, Products Unlimited | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Attachment Mounting Style | Chassis Mount | |
| Inductor Operating Volts | 24VAC | |
| Switch Contact Layout | DPST-NO (DM) (2 Form X) | |
| Pin Ampere Capacity | 26 A | |
| Switch Rated Volts | 600VAC - Max | |
| Key Product Highlights | Insulation - Class B | |
| Lead Termination Type | Screw Terminal, Quick Connect - 0.250" (6.3mm) | |
| Ambient Temp Range | -40°C ~ 65°C | |
| Minimum Activation Volts | 18 VAC | |
| Release Voltage Level | 6 VAC |
Description
Operates with a coil voltage of 24VAC for reliable functionality. Utilizes a contact configuration categorized as DPST-NO (DM) (2 Form X). Supports a contact current rating of 26 A. Equipped with features categorized as Insulation - Class B. Mounting configuration Chassis Mount for structural stability. Needs a voltage of 18 VAC for effective activation. Requires a release voltage of 6 VAC for reliable functioning. Temperature range -40°C ~ 65°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component 3100, Products Unlimited. The switch's voltage specification 600VAC - Max as per electrical regulations. Type of termination Screw Terminal, Quick Connect - 0.250" (6.3mm) for connector or device.
