Stock:
Distributor: 109
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50 | ₹ 3,465.66000 | ₹ 1,73,283.00 |
| 25 | ₹ 4,332.52000 | ₹ 1,08,313.00 |
| 10 | ₹ 6,932.21000 | ₹ 69,322.10 |
| 1 | ₹ 10,397.87000 | ₹ 10,397.87 |
Stock:
Distributor: 120
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 73 | ₹ 3,634.40000 | ₹ 2,65,311.20 |
| 55 | ₹ 3,750.53000 | ₹ 2,06,279.15 |
| 34 | ₹ 3,920.73000 | ₹ 1,33,304.82 |
| 17 | ₹ 4,090.92000 | ₹ 69,545.64 |
| 11 | ₹ 4,261.56000 | ₹ 46,877.16 |
| 1 | ₹ 4,432.20000 | ₹ 4,432.20 |
Stock:
Distributor: 112
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50 | ₹ 5,147.76000 | ₹ 2,57,388.00 |
| 100 | ₹ 5,046.30000 | ₹ 5,04,630.00 |
Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 5,885.47000 | ₹ 5,885.47 |
| 5 | ₹ 5,881.63000 | ₹ 29,408.15 |
| 10 | ₹ 5,702.40000 | ₹ 57,024.00 |

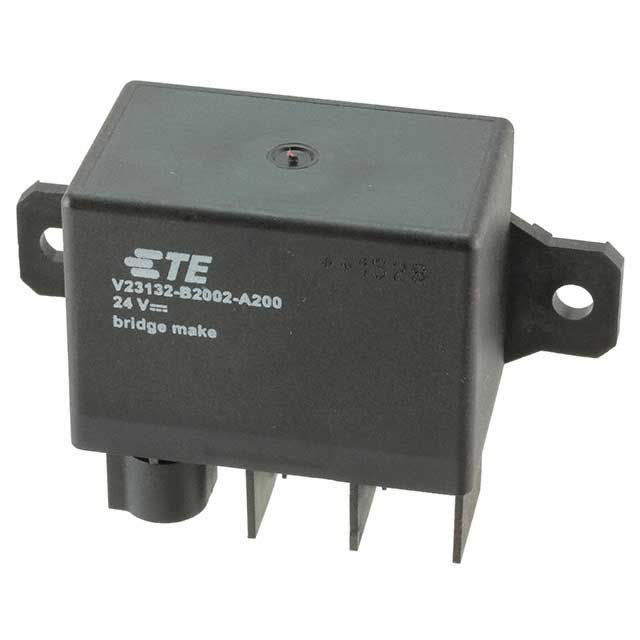

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | HCR 150 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Electromagnetic Coil Design | Non Latching | |
| Electromagnet Amp Draw | - | |
| Inductor Operating Volts | 24VDC | |
| Switch Contact Layout | SPST-NO (DM) (1 Form X) | |
| Pin Ampere Capacity | 130 A | |
| Switch Rated Volts | 24VDC - Nom | |
| Minimum Activation Volts | 14.4 VDC | |
| Release Voltage Level | 2.4 VDC | |
| Activation Response Time | 25 ms | |
| Reset Response Duration | 8 ms | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Screw Terminal | |
| Ambient Temp Range | -40°C ~ 125°C |
Description
Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 24VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (DM) (1 Form X). Supports a contact current rating of 130 A. Mounting configuration Chassis Mount for structural stability. Needs a voltage of 14.4 VDC for effective activation. Requires a release voltage of 2.4 VDC for reliable functioning. Time duration 25 ms for the response upon activation. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Duration required 8 ms for reset and reaction. Classification series for the product or component HCR 150. The switch's voltage specification 24VDC - Nom as per electrical regulations. Type of termination Screw Terminal for connector or device.
