Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2000 | ₹ 253.12000 | ₹ 5,06,240.00 |
| 500 | ₹ 271.46000 | ₹ 1,35,730.00 |
| 250 | ₹ 281.12000 | ₹ 70,280.00 |
| 100 | ₹ 294.40000 | ₹ 29,440.00 |
| 50 | ₹ 304.85000 | ₹ 15,242.50 |
| 25 | ₹ 315.67000 | ₹ 7,891.75 |
| 10 | ₹ 330.49000 | ₹ 3,304.90 |
| 1 | ₹ 370.96000 | ₹ 370.96 |
Stock:
Distributor: 119
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 798.68000 | ₹ 798.68 |
| 2000 | ₹ 559.07000 | ₹ 11,18,140.00 |
| 5000 | ₹ 423.72000 | ₹ 21,18,600.00 |
| 10000 | ₹ 347.22000 | ₹ 34,72,200.00 |
| 30000 | ₹ 323.68000 | ₹ 97,10,400.00 |

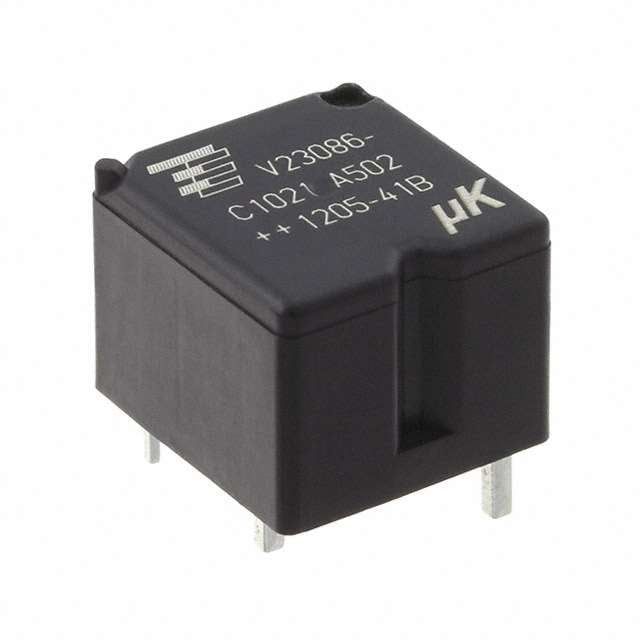

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Micro Relay K | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Electromagnetic Coil Design | Non Latching | |
| Electromagnet Amp Draw | 55.2 mA | |
| Inductor Operating Volts | 10VDC | |
| Switch Contact Layout | SPST-NO (1 Form A) | |
| Pin Ampere Capacity | 30 A | |
| Switch Rated Volts | 14VDC - Nom | |
| Minimum Activation Volts | 6.9 VDC | |
| Release Voltage Level | 1.5 VDC | |
| Activation Response Time | 3 ms | |
| Reset Response Duration | 1.5 ms | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Through Hole | |
| Lead Termination Type | PC Pin | |
| Ambient Temp Range | -40°C ~ 105°C |
Description
Supports coil current measured at 55.2 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 10VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Supports a contact current rating of 30 A. Mounting configuration Through Hole for structural stability. Needs a voltage of 6.9 VDC for effective activation. Requires a release voltage of 1.5 VDC for reliable functioning. Time duration 3 ms for the response upon activation. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Duration required 1.5 ms for reset and reaction. Classification series for the product or component Micro Relay K. The switch's voltage specification 14VDC - Nom as per electrical regulations. Type of termination PC Pin for connector or device.
