Stock:
Distributor: 122
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 192.33000 | ₹ 1,92,330.00 |
Stock:
Distributor: 120
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 9 | ₹ 194.38000 | ₹ 1,749.42 |
| 2 | ₹ 299.04000 | ₹ 598.08 |
Stock:
Distributor: 69
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 40 | ₹ 202.03000 | ₹ 8,081.20 |
| 80 | ₹ 199.36000 | ₹ 15,948.80 |
| 120 | ₹ 195.80000 | ₹ 23,496.00 |
| 200 | ₹ 193.13000 | ₹ 38,626.00 |
| 400 | ₹ 187.79000 | ₹ 75,116.00 |
Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 483.41000 | ₹ 483.41 |
| 5 | ₹ 422.98000 | ₹ 2,114.90 |
| 10 | ₹ 350.47000 | ₹ 3,504.70 |
| 20 | ₹ 314.22000 | ₹ 6,284.40 |
| 50 | ₹ 295.91000 | ₹ 14,795.50 |

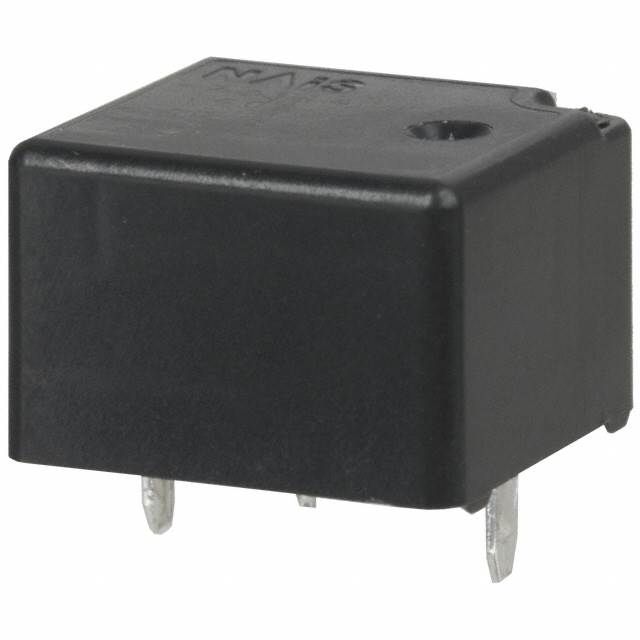

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | CP | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Electromagnetic Coil Design | Non Latching | |
| Electromagnet Amp Draw | 53.3 mA | |
| Inductor Operating Volts | 12VDC | |
| Switch Contact Layout | SPDT (1 Form C) | |
| Pin Ampere Capacity | 20 A | |
| Switch Rated Volts | 14VDC - Nom | |
| Minimum Activation Volts | 7.2 VDC | |
| Release Voltage Level | 1 VDC | |
| Activation Response Time | 10 ms | |
| Reset Response Duration | 10 ms | |
| Key Product Highlights | Sealed - Fully | |
| Attachment Mounting Style | Through Hole | |
| Lead Termination Type | PC Pin | |
| Ambient Temp Range | -40°C ~ 85°C |
Description
Supports coil current measured at 53.3 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 12VDC for reliable functionality. Utilizes a contact configuration categorized as SPDT (1 Form C). Supports a contact current rating of 20 A. Equipped with features categorized as Sealed - Fully. Mounting configuration Through Hole for structural stability. Needs a voltage of 7.2 VDC for effective activation. Requires a release voltage of 1 VDC for reliable functioning. Time duration 10 ms for the response upon activation. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Duration required 10 ms for reset and reaction. Classification series for the product or component CP. The switch's voltage specification 14VDC - Nom as per electrical regulations. Type of termination PC Pin for connector or device.
