Stock:
Distributor: 69
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3 | ₹ 186.01000 | ₹ 558.03 |
| 10 | ₹ 183.34000 | ₹ 1,833.40 |
| 25 | ₹ 180.67000 | ₹ 4,516.75 |
| 50 | ₹ 178.00000 | ₹ 8,900.00 |
| 100 | ₹ 175.33000 | ₹ 17,533.00 |
| 150 | ₹ 172.66000 | ₹ 25,899.00 |
| 250 | ₹ 169.99000 | ₹ 42,497.50 |

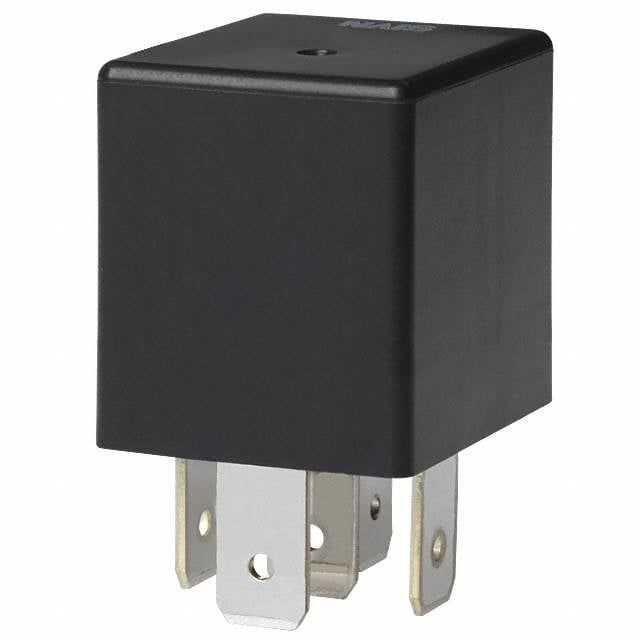

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | CB | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Electromagnetic Coil Design | Non Latching | |
| Electromagnet Amp Draw | 117 mA | |
| Inductor Operating Volts | 12VDC | |
| Switch Contact Layout | SPDT (1 Form C) | |
| Pin Ampere Capacity | 40 A | |
| Switch Rated Volts | 14VDC - Nom | |
| Minimum Activation Volts | 7 VDC | |
| Release Voltage Level | 1.2 VDC | |
| Activation Response Time | 15 ms | |
| Reset Response Duration | 15 ms | |
| Key Product Highlights | Sealed - Fully | |
| Attachment Mounting Style | Socketable | |
| Lead Termination Type | Plug In, Quick Connect - 0.250" (6.3mm) | |
| Ambient Temp Range | -40°C ~ 85°C |
Description
Supports coil current measured at 117 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 12VDC for reliable functionality. Utilizes a contact configuration categorized as SPDT (1 Form C). Supports a contact current rating of 40 A. Equipped with features categorized as Sealed - Fully. Mounting configuration Socketable for structural stability. Needs a voltage of 7 VDC for effective activation. Requires a release voltage of 1.2 VDC for reliable functioning. Time duration 15 ms for the response upon activation. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Duration required 15 ms for reset and reaction. Classification series for the product or component CB. The switch's voltage specification 14VDC - Nom as per electrical regulations. Type of termination Plug In, Quick Connect - 0.250" (6.3mm) for connector or device.
