Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 200 | ₹ 6,175.97000 | ₹ 12,35,194.00 |
| 150 | ₹ 6,277.61000 | ₹ 9,41,641.50 |
| 100 | ₹ 6,391.29000 | ₹ 6,39,129.00 |
| 50 | ₹ 6,562.69000 | ₹ 3,28,134.50 |
| 25 | ₹ 6,737.42000 | ₹ 1,68,435.50 |
Stock:
Distributor: 114
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 25 | ₹ 6,917.08000 | ₹ 1,72,927.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 25 | ₹ 7,196.54000 | ₹ 1,79,913.50 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 25 | ₹ 8,390.44000 | ₹ 2,09,761.00 |

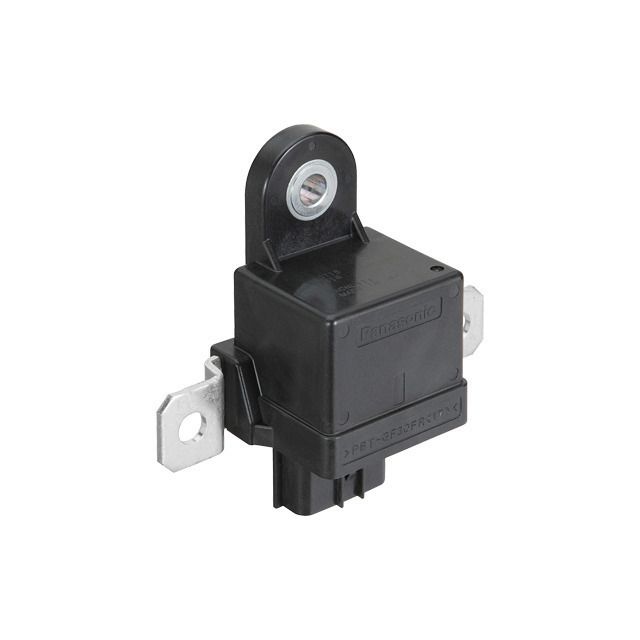

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | CN-L | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Electromagnetic Coil Design | Latching, Single Coil | |
| Electromagnet Amp Draw | 2.5 A | |
| Inductor Operating Volts | 12VDC | |
| Switch Contact Layout | SPST-NO (1 Form A) | |
| Pin Ampere Capacity | 150 A | |
| Switch Rated Volts | 14VDC - Nom | |
| Minimum Activation Volts | 7 VDC | |
| Release Voltage Level | - | |
| Activation Response Time | 10 ms | |
| Reset Response Duration | 10 ms | |
| Key Product Highlights | Sealed - Fully | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Plug In | |
| Ambient Temp Range | -40°C ~ 125°C |
Description
Supports coil current measured at 2.5 A. Designed with a coil type classified as Latching, Single Coil for optimal electrical efficiency. Operates with a coil voltage of 12VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Supports a contact current rating of 150 A. Equipped with features categorized as Sealed - Fully. Mounting configuration Chassis Mount for structural stability. Needs a voltage of 7 VDC for effective activation. Time duration 10 ms for the response upon activation. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Duration required 10 ms for reset and reaction. Classification series for the product or component CN-L. The switch's voltage specification 14VDC - Nom as per electrical regulations. Type of termination Plug In for connector or device.
