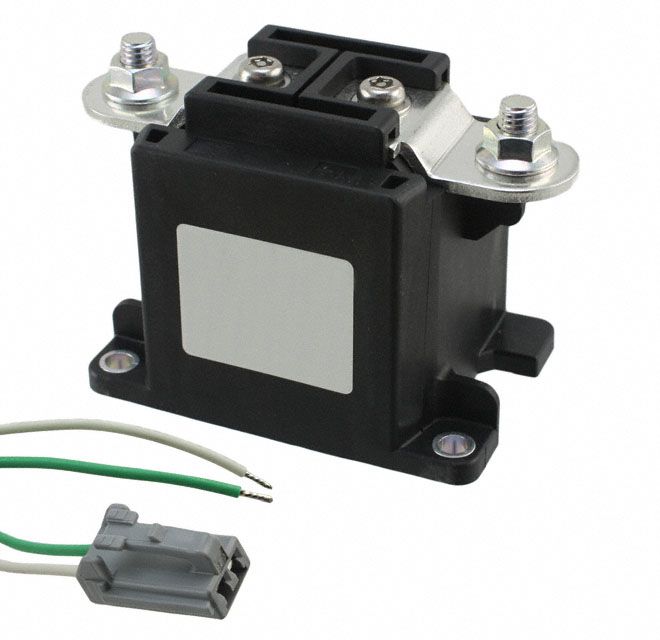

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | AEV | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Electromagnetic Coil Design | Non Latching | |
| Electromagnet Amp Draw | 1.9 A | |
| Inductor Operating Volts | 24VDC | |
| Switch Contact Layout | SPST-NO (1 Form A) | |
| Pin Ampere Capacity | 300 A | |
| Switch Rated Volts | 450VDC - Nom | |
| Minimum Activation Volts | 18 VDC | |
| Release Voltage Level | 4 VDC | |
| Activation Response Time | 30 ms | |
| Reset Response Duration | 10 ms | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Stud | |
| Ambient Temp Range | -40°C ~ 85°C |
Description
Supports coil current measured at 1.9 A. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 24VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Supports a contact current rating of 300 A. Mounting configuration Chassis Mount for structural stability. Needs a voltage of 18 VDC for effective activation. Requires a release voltage of 4 VDC for reliable functioning. Time duration 30 ms for the response upon activation. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Duration required 10 ms for reset and reaction. Classification series for the product or component AEV. The switch's voltage specification 450VDC - Nom as per electrical regulations. Type of termination Stud for connector or device.
