Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5016 | ₹ 151.48000 | ₹ 7,59,823.68 |
| 1026 | ₹ 164.11000 | ₹ 1,68,376.86 |
| 532 | ₹ 169.64000 | ₹ 90,248.48 |
| 266 | ₹ 175.66000 | ₹ 46,725.56 |
| 114 | ₹ 183.32000 | ₹ 20,898.48 |
| 76 | ₹ 187.09000 | ₹ 14,218.84 |
| 38 | ₹ 193.73000 | ₹ 7,361.74 |
| 10 | ₹ 207.17000 | ₹ 2,071.70 |
| 1 | ₹ 232.76000 | ₹ 232.76 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 232.29000 | ₹ 232.29 |
| 10 | ₹ 207.37000 | ₹ 2,073.70 |
| 25 | ₹ 197.58000 | ₹ 4,939.50 |
| 50 | ₹ 189.57000 | ₹ 9,478.50 |
| 100 | ₹ 184.23000 | ₹ 18,423.00 |
| 250 | ₹ 175.33000 | ₹ 43,832.50 |
| 500 | ₹ 169.10000 | ₹ 84,550.00 |
| 950 | ₹ 158.42000 | ₹ 1,50,499.00 |

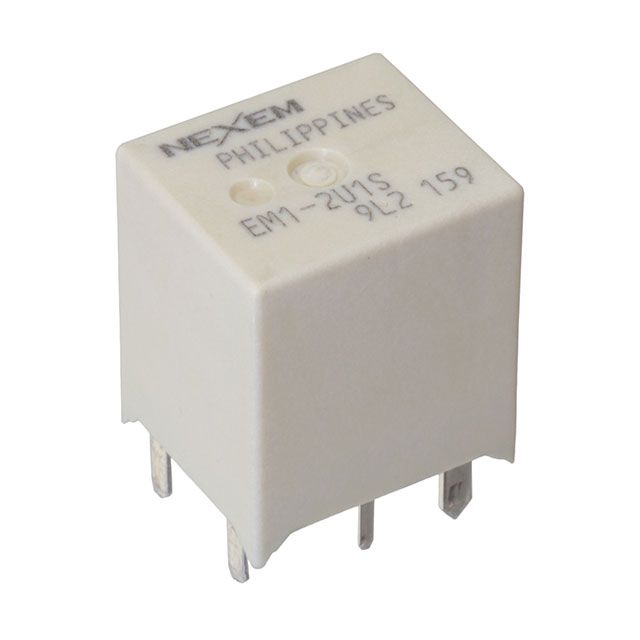

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | EM1 | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Electromagnetic Coil Design | Non Latching | |
| Electromagnet Amp Draw | 53.3 mA | |
| Inductor Operating Volts | 12VDC | |
| Switch Contact Layout | SPST-NO (DM) (1 Form U) | |
| Pin Ampere Capacity | 54 A | |
| Switch Rated Volts | 16VDC - Max | |
| Minimum Activation Volts | 6.5 VDC | |
| Release Voltage Level | 0.9 VDC | |
| Activation Response Time | 6 ms | |
| Reset Response Duration | 1 ms | |
| Key Product Highlights | Sealed - Fully | |
| Attachment Mounting Style | Through Hole | |
| Lead Termination Type | PC Pin | |
| Ambient Temp Range | -40°C ~ 125°C |
Description
Supports coil current measured at 53.3 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 12VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (DM) (1 Form U). Supports a contact current rating of 54 A. Equipped with features categorized as Sealed - Fully. Mounting configuration Through Hole for structural stability. Needs a voltage of 6.5 VDC for effective activation. Requires a release voltage of 0.9 VDC for reliable functioning. Time duration 6 ms for the response upon activation. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Duration required 1 ms for reset and reaction. Classification series for the product or component EM1. The switch's voltage specification 16VDC - Max as per electrical regulations. Type of termination PC Pin for connector or device.
