Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |

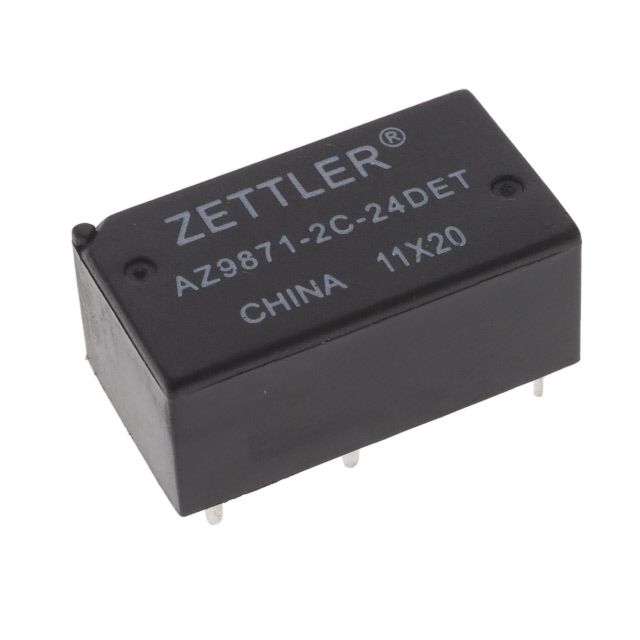

| Product Series Line | AZ9871 | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Electromagnetic Coil Design | Non Latching | |
| Electromagnet Amp Draw | 23.8 mA | |
| Inductor Operating Volts | 24VDC | |
| Switch Contact Layout | DPDT (2 Form C) | |
| Pin Ampere Capacity | 30 A | |
| Switch Rated Volts | 24VDC - Max | |
| Minimum Activation Volts | 13.8 VDC | |
| Release Voltage Level | 3 VDC | |
| Activation Response Time | 3 ms | |
| Reset Response Duration | 1.5 ms | |
| Key Product Highlights | Sealed - Epoxy | |
| Attachment Mounting Style | Through Hole | |
| Lead Termination Type | PC Pin | |
| Ambient Temp Range | -40°C ~ 105°C |
Description
Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supports coil current measured at 23.8 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 24VDC for reliable functionality. Utilizes a contact configuration categorized as DPDT (2 Form C). Supports a contact current rating of 30 A. Equipped with features categorized as Sealed - Epoxy. Mounting configuration Through Hole for structural stability. Needs a voltage of 13.8 VDC for effective activation. Requires a release voltage of 3 VDC for reliable functioning. Time duration 3 ms for the response upon activation. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Duration required 1.5 ms for reset and reaction. Classification series for the product or component AZ9871. The switch's voltage specification 24VDC - Max as per electrical regulations. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type of termination PC Pin for connector or device. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
