Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | MOSFET N-Channel, Metal Oxide | |
| Drain-Source Breakdown Volts | 30V | |
| Continuous Drain Current at 25C | 22A | |
| Max On-State Resistance | 3.3 mOhm @ 17A, 10V | |
| Max Threshold Gate Voltage | 3V @ 3.35mA | |
| Gate Charge at Vgs | 22nC @ 4.5V | |
| Input Cap at Vds | 3920pF @ 10V | |
| Maximum Power Handling | 2.8W | |
| Attachment Mounting Style | - | |

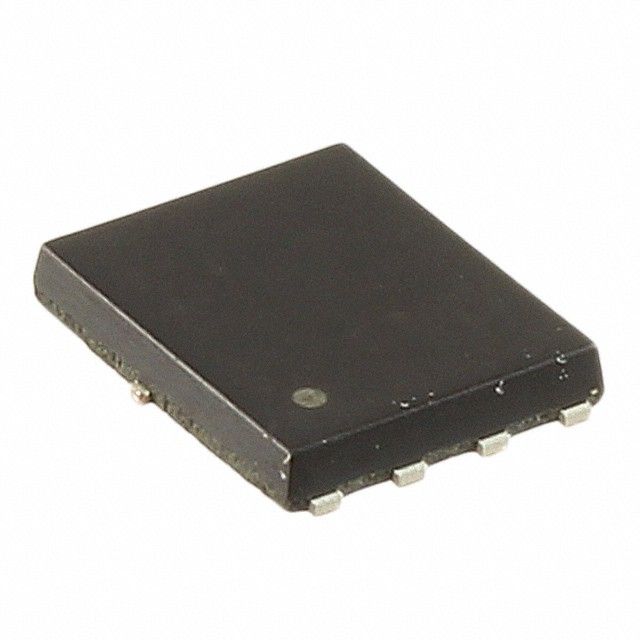

| Component Housing Style | 8-SMD, Flat Lead |
Description
Assesses resistance at forward current MOSFET N-Channel, Metal Oxide for LED or diode testing. Is capable of sustaining a continuous drain current (Id) of 22A at 25°C. Supports a Vdss drain-to-source voltage rated at 30V. Includes FET category defined as MOSFET N-Channel, Metal Oxide. Maintains 22nC @ 4.5V gate charge at Vgs for dependable MOSFET operation. The input capacitance is specified at 3920pF @ 10V at Vds for peak performance. Style of the enclosure/case 8-SMD, Flat Lead that offers mechanical and thermal protection. Maximum power capability 2.8W for safeguarding the device. Maximum Rds(on) at Id 22nC @ 4.5V for MOSFET performance. Maximum Rds(on) at Id and Vgs 3.3 mOhm @ 17A, 10V for MOSFET specifications. Maximum Vgs(th) at Id 3V @ 3.35mA for MOSFET threshold specifications.
