Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | MOSFET N-Channel, Metal Oxide | |
| Drain-Source Breakdown Volts | 33V | |
| Continuous Drain Current at 25C | 8A (Ta) | |
| Max On-State Resistance | 15 mOhm @ 4A, 10V | |
| Max Threshold Gate Voltage | 2.5V @ 730µA | |
| Gate Charge at Vgs | 5.1nC @ 4.5V | |
| Input Cap at Vds | 520pF @ 10V | |
| Maximum Power Handling | 1W | |
| Attachment Mounting Style | Surface Mount | |

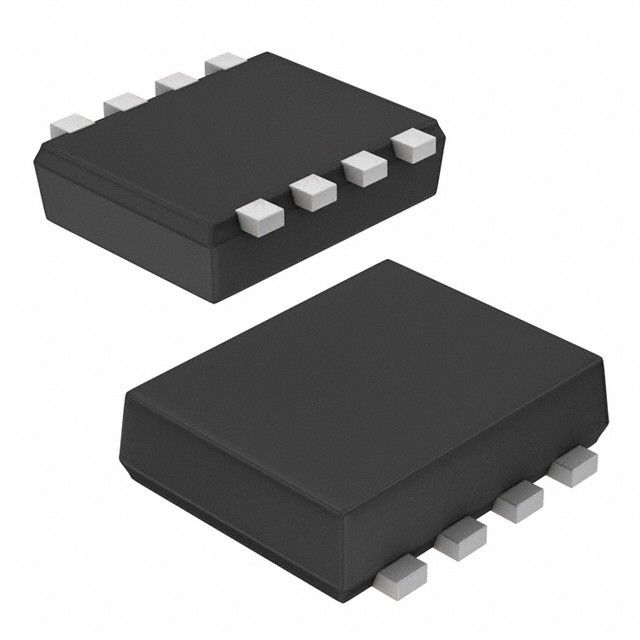

| Component Housing Style | 8-SMD, Flat Lead |
Description
Assesses resistance at forward current MOSFET N-Channel, Metal Oxide for LED or diode testing. Is capable of sustaining a continuous drain current (Id) of 8A (Ta) at 25°C. Supports a Vdss drain-to-source voltage rated at 33V. Includes FET category defined as MOSFET N-Channel, Metal Oxide. Maintains 5.1nC @ 4.5V gate charge at Vgs for dependable MOSFET operation. The input capacitance is specified at 520pF @ 10V at Vds for peak performance. Mounting configuration Surface Mount for structural stability. Style of the enclosure/case 8-SMD, Flat Lead that offers mechanical and thermal protection. Maximum power capability 1W for safeguarding the device. Maximum Rds(on) at Id 5.1nC @ 4.5V for MOSFET performance. Maximum Rds(on) at Id and Vgs 15 mOhm @ 4A, 10V for MOSFET specifications. Maximum Vgs(th) at Id 2.5V @ 730µA for MOSFET threshold specifications.
