Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | MOSFET N-Channel, Metal Oxide | |
| Drain-Source Breakdown Volts | 60V | |
| Continuous Drain Current at 25C | 30A (Tc) | |
| Max On-State Resistance | 40 mOhm @ 15A, 10V | |
| Max Threshold Gate Voltage | 2.5V @ 1mA | |
| Gate Charge at Vgs | - | |
| Input Cap at Vds | 1200pF @ 10V | |
| Maximum Power Handling | 25W | |
| Attachment Mounting Style | Surface Mount | |

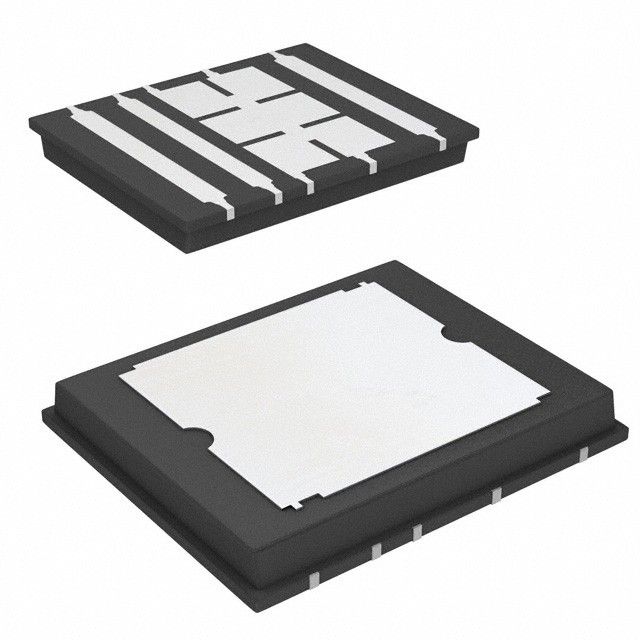

| Component Housing Style | U-G2 |
Description
Assesses resistance at forward current MOSFET N-Channel, Metal Oxide for LED or diode testing. Is capable of sustaining a continuous drain current (Id) of 30A (Tc) at 25°C. Supports a Vdss drain-to-source voltage rated at 60V. Includes FET category defined as MOSFET N-Channel, Metal Oxide. The input capacitance is specified at 1200pF @ 10V at Vds for peak performance. Mounting configuration Surface Mount for structural stability. Style of the enclosure/case U-G2 that offers mechanical and thermal protection. Maximum power capability 25W for safeguarding the device. Maximum Rds(on) at Id and Vgs 40 mOhm @ 15A, 10V for MOSFET specifications. Maximum Vgs(th) at Id 2.5V @ 1mA for MOSFET threshold specifications.
