Attribute
Description
Manufacturer Part Number

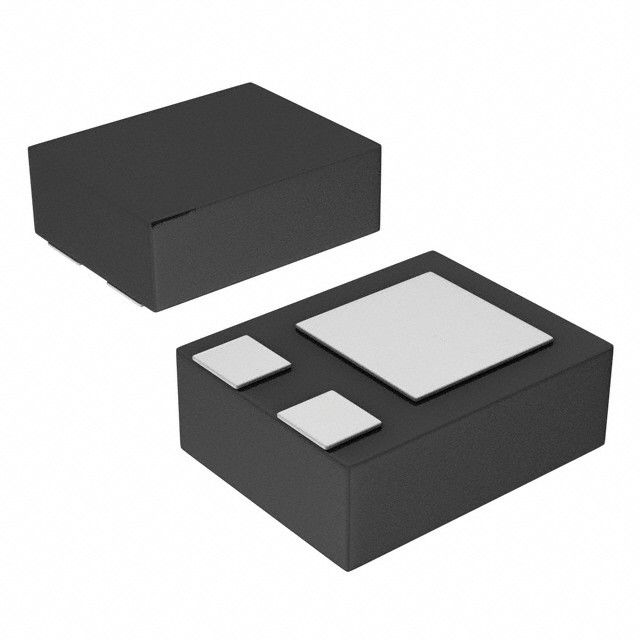

DMN2300UFB4-7B
Manufacturer
Description
MOSF N CH 20V 1.3A DFN1006H4-3
Manufacturer Lead Time
28 weeks
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 2
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 36.49000 | ₹ 36.49 |
Stock:
Distributor: 11
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5 | ₹ 969.21000 | ₹ 4,846.05 |
| 20 | ₹ 680.85000 | ₹ 13,617.00 |
| 100 | ₹ 610.54000 | ₹ 61,054.00 |
| 500 | ₹ 539.34000 | ₹ 2,69,670.00 |
| 2000 | ₹ 484.16000 | ₹ 9,68,320.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| FET Type | MOSFET N-Channel, Metal Oxide | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 1.3A (Ta) | |
| Rds On (Max) @ Id, Vgs | 175 mOhm @ 300mA, 4.5V | |
| Vgs(th) (Max) @ Id | 950mV @ 250µA | |
| Gate Charge (Qg) @ Vgs | 1.6nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 64.3pF @ 25V | |
| Power - Max | 470mW | |
| Mounting Type | Surface Mount | |
| Package / Case | 3-XFDFN |
