Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Semiconductor Diode Category | Standard | |
| Reverse DC Voltage(Vr) | 1200V (1.2kV) | |
| Average DC Output Current | 15A | |
| Forward Voltage (Vf) | 3.25V @ 15A | |
| Operational Speed Rating | Fast Recovery =< 500ns, > 200mA (Io) | |
| trr Recovery | 35ns | |
| Reverse Leakage Current @ Vr | 100µA @ 1200V | |
| Capacitance at Voltage and Frequency | - | |
| Heat Dissipation Resistance | 0.5°C/W Cs | |
| Junction Temp Range | -55°C ~ 175°C | |
| Attachment Mounting Style | Through Hole | |

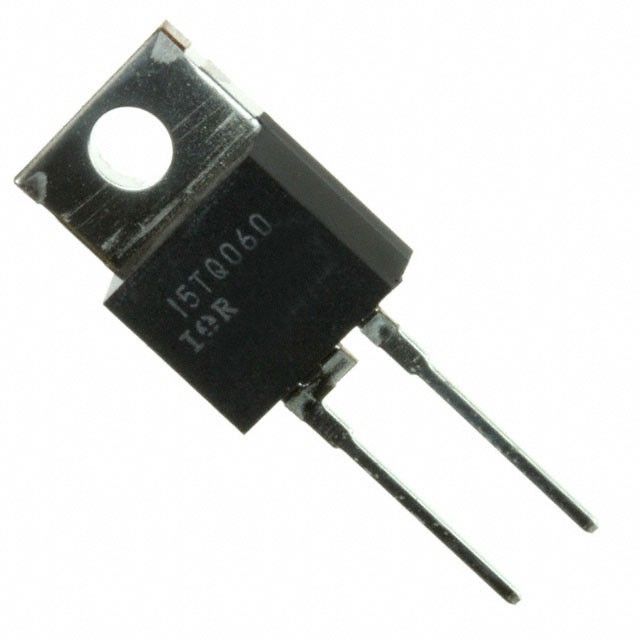

| Component Housing Style | TO-220-2 |
Description
Assesses resistance at forward current 3.25V @ 15A for LED or diode testing. Provides an average rectified current (Io) recorded at 15A. Shows the type of diode identified as Standard. Mounting configuration Through Hole for structural stability. Resistance during the on-state 0.5°C/W Cs for effective conduction. Temperature range -55°C ~ 175°C at the junction to safeguard components. Style of the enclosure/case TO-220-2 that offers mechanical and thermal protection. Reverse recovery time 35ns for switching diodes. Operational speed Fast Recovery =< 500ns, > 200mA (Io) for mechanical or data tasks. Thermal resistance measurement 0.5°C/W Cs for managing temperature. Maximum Vce(on) at Vge Standard for transistor specifications.
