Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 15000 | ₹ 13.23000 | ₹ 1,98,450.00 |
| 9000 | ₹ 14.48000 | ₹ 1,30,320.00 |
| 6000 | ₹ 15.17000 | ₹ 91,020.00 |
| 3000 | ₹ 16.54000 | ₹ 49,620.00 |
| 1000 | ₹ 19.24000 | ₹ 19,240.00 |
| 500 | ₹ 21.37000 | ₹ 10,685.00 |
| 100 | ₹ 27.97000 | ₹ 2,797.00 |
| 10 | ₹ 43.25000 | ₹ 432.50 |
| 1 | ₹ 69.42000 | ₹ 69.42 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Obsolete | |
| Nominal Zener Voltage | 12 V | |
| Accuracy Tolerance Percentage | ±10% | |
| Maximum Power Handling | 2 W | |
| Maximum Zener Impedance | 30 Ohms | |
| Reverse Leak at Voltage | 10 µA @ 8 V | |
| Max Forward Voltage Drop | 1.2 V @ 200 mA | |
| Ambient Temp Range | -40°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

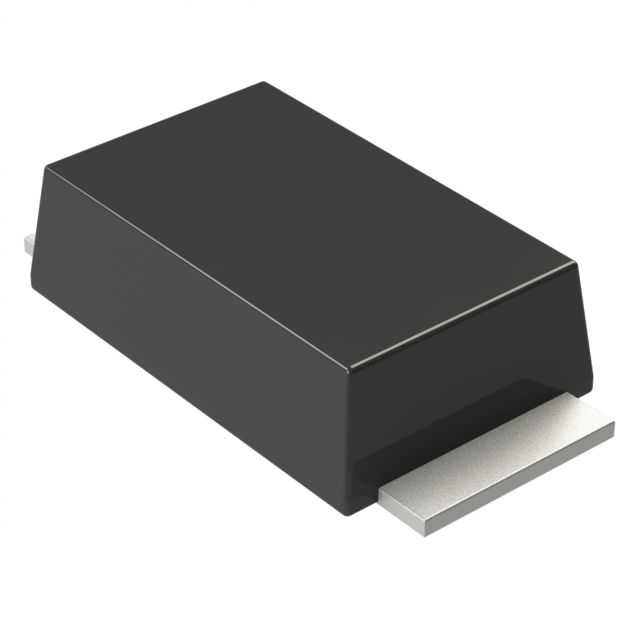

| Component Housing Style | SOD-128 | |
| Vendor Package Type | M-FLAT (2.4x3.8) |
Description
Shows reverse leakage current noted at 10 µA @ 8 V at Vr. Maximum Zzt impedance of 30 Ohms ensures circuit reliability. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case SOD-128 that offers mechanical and thermal protection. Type of package M-FLAT (2.4x3.8) that preserves the integrity of the device. Maximum power capability 2 W for safeguarding the device. Product status Obsolete concerning availability and lifecycle. Supplier package type M-FLAT (2.4x3.8) for component selection. Precision tolerance level ±10% in manufacturing processes. Maximum forward voltage drop Vf at If 1.2 V @ 200 mA for diodes. Typical Zener voltage Vz 12 V for voltage stabilization.
