Stock:
Distributor: 160
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100000 | ₹ 2.41000 | ₹ 2,41,000.00 |
| 10000 | ₹ 2.87000 | ₹ 28,700.00 |
| 1000 | ₹ 3.23000 | ₹ 3,230.00 |
| 500 | ₹ 3.50000 | ₹ 1,750.00 |
| 100 | ₹ 3.89000 | ₹ 389.00 |
Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100000 | ₹ 3.02000 | ₹ 3,02,000.00 |
| 10000 | ₹ 3.60000 | ₹ 36,000.00 |
| 8265 | ₹ 4.04000 | ₹ 33,390.60 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5492 | ₹ 4.45000 | ₹ 24,439.40 |
Stock:
Distributor: 118
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3102 | ₹ 7.65000 | ₹ 23,730.30 |
| 259 | ₹ 11.48000 | ₹ 2,973.32 |
| 1 | ₹ 38.27000 | ₹ 38.27 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Nominal Zener Voltage | 18 V | |
| Accuracy Tolerance Percentage | ±2% | |
| Maximum Power Handling | 500 mW | |
| Maximum Zener Impedance | 55 Ohms | |
| Reverse Leak at Voltage | 50 nA @ 12.6 V | |
| Max Forward Voltage Drop | 1.5 V @ 200 mA | |
| Ambient Temp Range | -55°C ~ 175°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

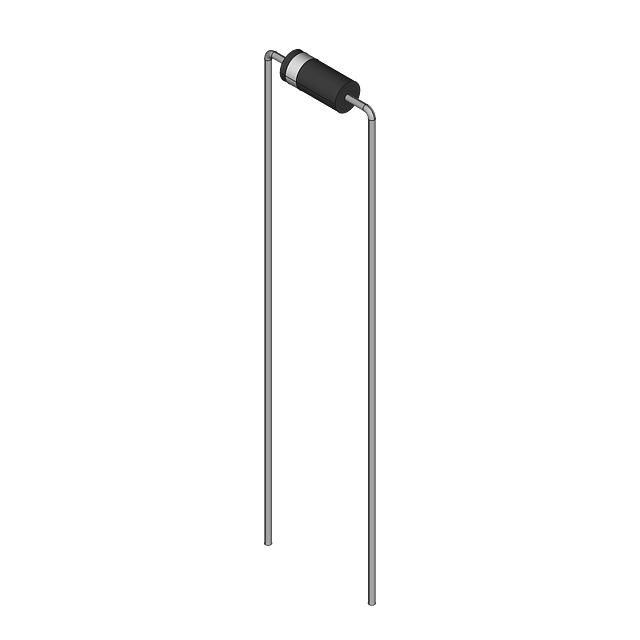

| Component Housing Style | DO-204AH, DO-35, Axial | |
| Vendor Package Type | ALF2 |
Description
Shows reverse leakage current noted at 50 nA @ 12.6 V at Vr. Maximum Zzt impedance of 55 Ohms ensures circuit reliability. Mounting configuration Through Hole for structural stability. Temperature range -55°C ~ 175°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case DO-204AH, DO-35, Axial that offers mechanical and thermal protection. Type of package ALF2 that preserves the integrity of the device. Maximum power capability 500 mW for safeguarding the device. Product status Active concerning availability and lifecycle. Supplier package type ALF2 for component selection. Precision tolerance level ±2% in manufacturing processes. Maximum forward voltage drop Vf at If 1.5 V @ 200 mA for diodes. Typical Zener voltage Vz 18 V for voltage stabilization.
