Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Nominal Zener Voltage | 75 V | |
| Accuracy Tolerance Percentage | ±5% | |
| Maximum Power Handling | 500 mW | |
| Maximum Zener Impedance | 270 Ohms | |
| Reverse Leak at Voltage | 100 nA @ 56 V | |
| Max Forward Voltage Drop | 1.1 V @ 200 mA | |
| Ambient Temp Range | -55°C ~ 150°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

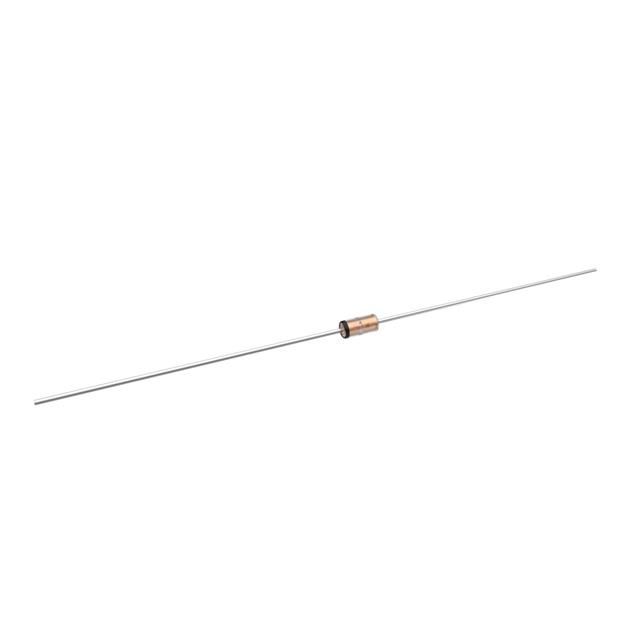

| Component Housing Style | DO-204AH, DO-35, Axial | |
| Vendor Package Type | DO-35 |
Description
Shows reverse leakage current noted at 100 nA @ 56 V at Vr. Maximum Zzt impedance of 270 Ohms ensures circuit reliability. Mounting configuration Through Hole for structural stability. Temperature range -55°C ~ 150°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case DO-204AH, DO-35, Axial that offers mechanical and thermal protection. Type of package DO-35 that preserves the integrity of the device. Maximum power capability 500 mW for safeguarding the device. Product status Obsolete concerning availability and lifecycle. Supplier package type DO-35 for component selection. Precision tolerance level ±5% in manufacturing processes. Maximum forward voltage drop Vf at If 1.1 V @ 200 mA for diodes. Typical Zener voltage Vz 75 V for voltage stabilization.
