Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 7 | ₹ 18,306.82000 | ₹ 1,28,147.74 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Internal Structure Design | Series Connection - SCR/Diode | |
| Thyristor Diode Count | 1 SCR, 1 Diode | |
| Off-State Voltage Rating | 2.2 kV | |
| Max Average On-State Current | 430 A | |
| Max RMS On-State Current | 800 A | |
| Max Gate Trigger Volts | 3 V | |
| Max Gate Trigger Amps | 200 mA | |
| Non-Repetitive Surge 50/60Hz | 14000A, 16000A | |
| Maximum Holding Current | - | |
| Ambient Temp Range | -40°C ~ 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Chassis Mount | |

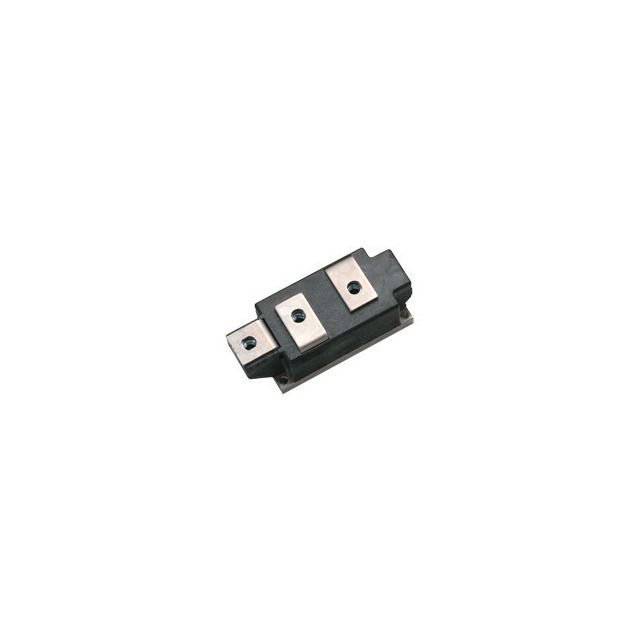

| Component Housing Style | POW-R-BLOK™ Module |
Description
Features a maximum gate trigger current (Igt) rated at 200 mA. Is designed to manage surge current Itsm rated at 14000A, 16000A for 50/60Hz. Offers a maximum average on-state current It(AV) of 430 A. Supports RMS on-state current rated at 800 A. Mounting configuration Chassis Mount for structural stability. Overall count of SCRs/diodes 1 SCR, 1 Diode for circuit safeguarding. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case POW-R-BLOK™ Module that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Configuration Series Connection - SCR/Diode for components or materials. Maximum gate trigger voltage 3 V for SCR devices. The voltage 2.2 kV when the device is not active for switches or semiconductors.
