Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 160 | ₹ 1,463.45000 | ₹ 2,34,152.00 |
| 10 | ₹ 1,568.45000 | ₹ 15,684.50 |
| 1 | ₹ 2,151.94000 | ₹ 2,151.94 |
Stock:
Distributor: 69
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 160 | ₹ 1,480.07000 | ₹ 2,36,811.20 |
| 480 | ₹ 1,464.05000 | ₹ 7,02,744.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 2,152.91000 | ₹ 2,152.91 |
| 10 | ₹ 1,569.96000 | ₹ 15,699.60 |
| 100 | ₹ 1,464.94000 | ₹ 1,46,494.00 |
| 480 | ₹ 1,464.05000 | ₹ 7,02,744.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Internal Structure Design | 1-Phase Controller - All SCRs | |
| Thyristor Diode Count | 2 SCRs | |
| Off-State Voltage Rating | 600 V | |
| Max Average On-State Current | 64 A | |
| Max RMS On-State Current | 90 A | |
| Max Gate Trigger Volts | 1.6 V | |
| Max Gate Trigger Amps | 50 mA | |
| Non-Repetitive Surge 50/60Hz | 950A @ 60Hz | |
| Maximum Holding Current | 80 mA | |
| Ambient Temp Range | -40°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Chassis Mount | |

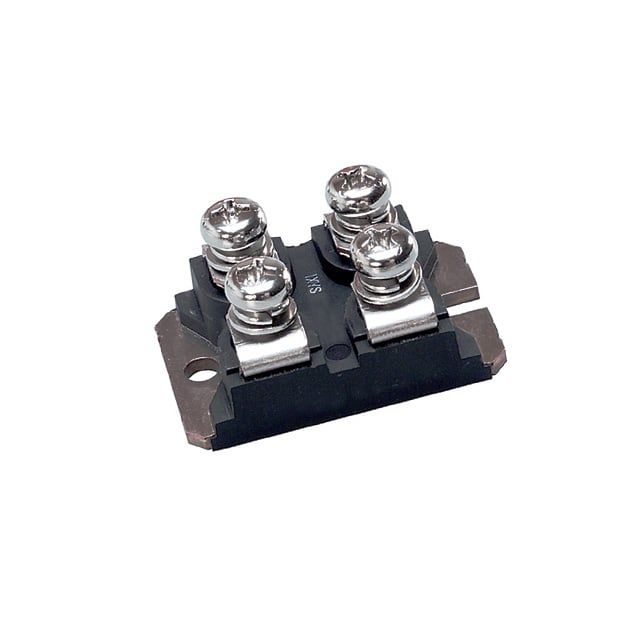

| Component Housing Style | SOT-227-4, miniBLOC |
Description
Features a maximum gate trigger current (Igt) rated at 50 mA. Indicates the maximum holding current recorded at 80 mA. Is designed to manage surge current Itsm rated at 950A @ 60Hz for 50/60Hz. Offers a maximum average on-state current It(AV) of 64 A. Supports RMS on-state current rated at 90 A. Mounting configuration Chassis Mount for structural stability. Overall count of SCRs/diodes 2 SCRs for circuit safeguarding. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case SOT-227-4, miniBLOC that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Configuration 1-Phase Controller - All SCRs for components or materials. Maximum gate trigger voltage 1.6 V for SCR devices. The voltage 600 V when the device is not active for switches or semiconductors.
