Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 16 | ₹ 12,494.43000 | ₹ 1,99,910.88 |
| 1 | ₹ 13,912.45000 | ₹ 13,912.45 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 13,912.48000 | ₹ 13,912.48 |
| 8 | ₹ 12,500.05000 | ₹ 1,00,000.40 |
Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 8 | ₹ 14,285.77000 | ₹ 1,14,286.16 |
Stock:
Distributor: 11
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 8 | ₹ 16,052.93000 | ₹ 1,28,423.44 |
| 3 | ₹ 17,296.26000 | ₹ 51,888.78 |
| 1 | ₹ 18,642.83000 | ₹ 18,642.83 |

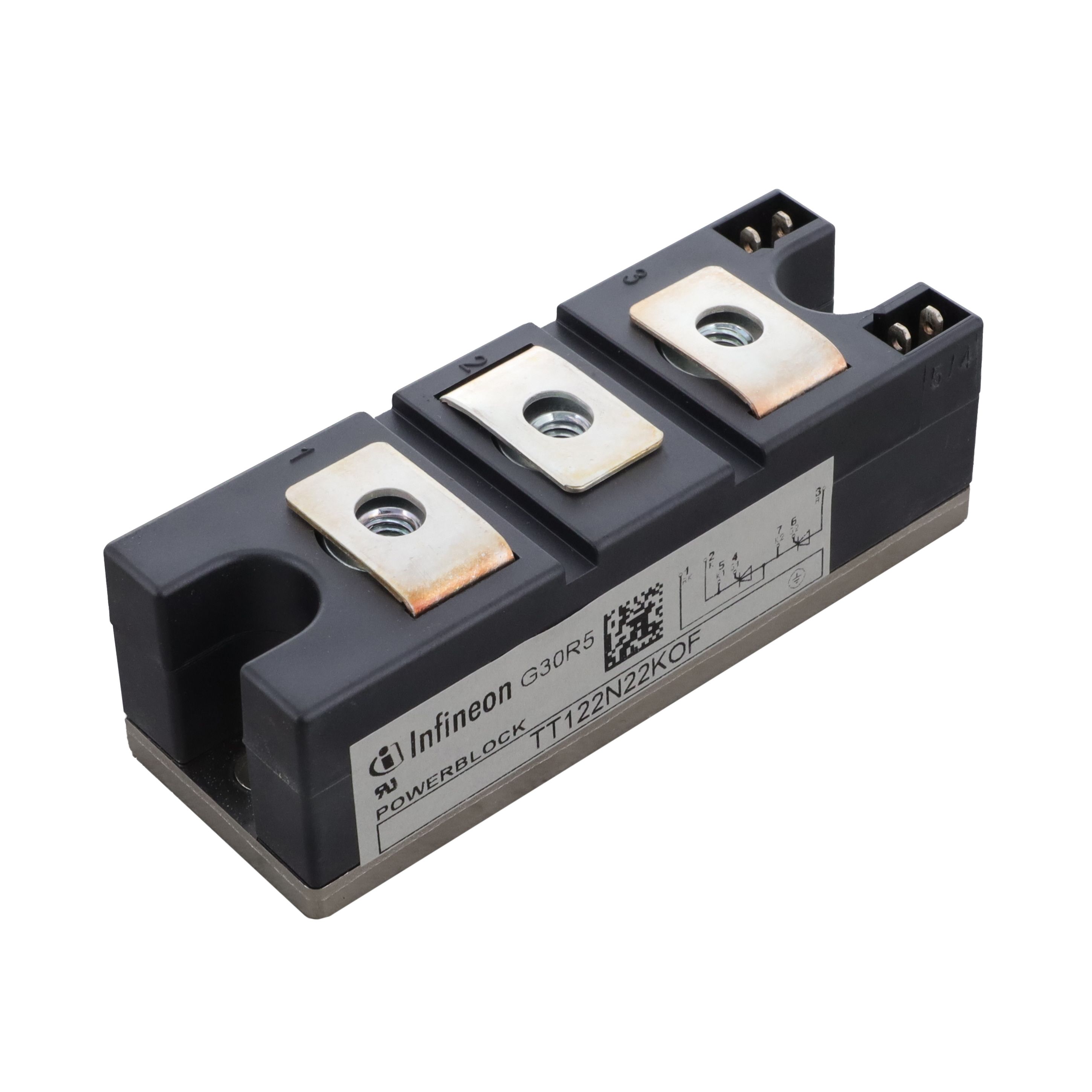

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Internal Structure Design | Series Connection - All SCRs | |
| Thyristor Diode Count | 2 SCRs | |
| Off-State Voltage Rating | 2.2 kV | |
| Max Average On-State Current | 140 A | |
| Max RMS On-State Current | 220 A | |
| Max Gate Trigger Volts | 2 V | |
| Max Gate Trigger Amps | 200 mA | |
| Non-Repetitive Surge 50/60Hz | 3300A @ 50Hz | |
| Maximum Holding Current | 300 mA | |
| Ambient Temp Range | 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Chassis Mount | |
| Component Housing Style | Module |
Description
Features a maximum gate trigger current (Igt) rated at 200 mA. Indicates the maximum holding current recorded at 300 mA. Is designed to manage surge current Itsm rated at 3300A @ 50Hz for 50/60Hz. Offers a maximum average on-state current It(AV) of 140 A. Supports RMS on-state current rated at 220 A. Mounting configuration Chassis Mount for structural stability. Overall count of SCRs/diodes 2 SCRs for circuit safeguarding. Temperature range 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case Module that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Configuration Series Connection - All SCRs for components or materials. Maximum gate trigger voltage 2 V for SCR devices. The voltage 2.2 kV when the device is not active for switches or semiconductors.
