Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 16 | ₹ 11,374.65000 | ₹ 1,81,994.40 |
| 1 | ₹ 12,844.93000 | ₹ 12,844.93 |
Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5 | ₹ 11,657.05000 | ₹ 58,285.25 |
| 1 | ₹ 12,460.00000 | ₹ 12,460.00 |
Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 12,595.41000 | ₹ 12,595.41 |
| 5 | ₹ 12,243.63000 | ₹ 61,218.15 |
| 10 | ₹ 11,891.84000 | ₹ 1,18,918.40 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 12,772.39000 | ₹ 12,772.39 |
| 8 | ₹ 11,379.54000 | ₹ 91,036.32 |
Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 8 | ₹ 13,005.45000 | ₹ 1,04,043.60 |

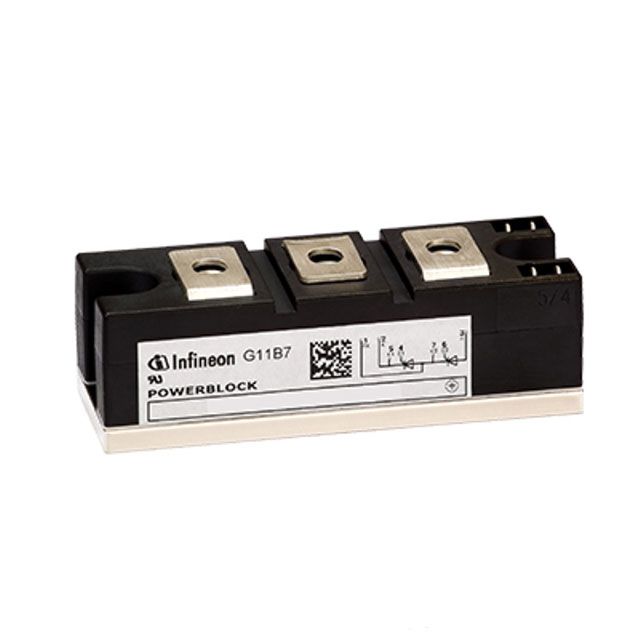

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Internal Structure Design | Series Connection - SCR/Diode | |
| Thyristor Diode Count | 1 SCR, 1 Diode | |
| Off-State Voltage Rating | 1.6 kV | |
| Max Average On-State Current | 162 A | |
| Max RMS On-State Current | 260 A | |
| Max Gate Trigger Volts | 2 V | |
| Max Gate Trigger Amps | 150 mA | |
| Non-Repetitive Surge 50/60Hz | 5200A @ 50Hz | |
| Maximum Holding Current | 200 mA | |
| Ambient Temp Range | 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Chassis Mount | |
| Component Housing Style | Module |
Description
Features a maximum gate trigger current (Igt) rated at 150 mA. Indicates the maximum holding current recorded at 200 mA. Is designed to manage surge current Itsm rated at 5200A @ 50Hz for 50/60Hz. Offers a maximum average on-state current It(AV) of 162 A. Supports RMS on-state current rated at 260 A. Mounting configuration Chassis Mount for structural stability. Overall count of SCRs/diodes 1 SCR, 1 Diode for circuit safeguarding. Temperature range 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case Module that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Configuration Series Connection - SCR/Diode for components or materials. Maximum gate trigger voltage 2 V for SCR devices. The voltage 1.6 kV when the device is not active for switches or semiconductors.
