Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Semiconductor Diode Category | Schottky - Single | |
| Max Peak Reverse Volts | 15V | |
| Maximum Amp Rating | 350 mA | |
| Capacitance at Voltage and Frequency | 6.7pF @ 0V, 1MHz | |
| Resistance at Current Frequency | 650mOhm @ 100mA, 1MHz | |
| Max Heat Dissipation | 350 mW | |
| Ambient Temp Range | 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |

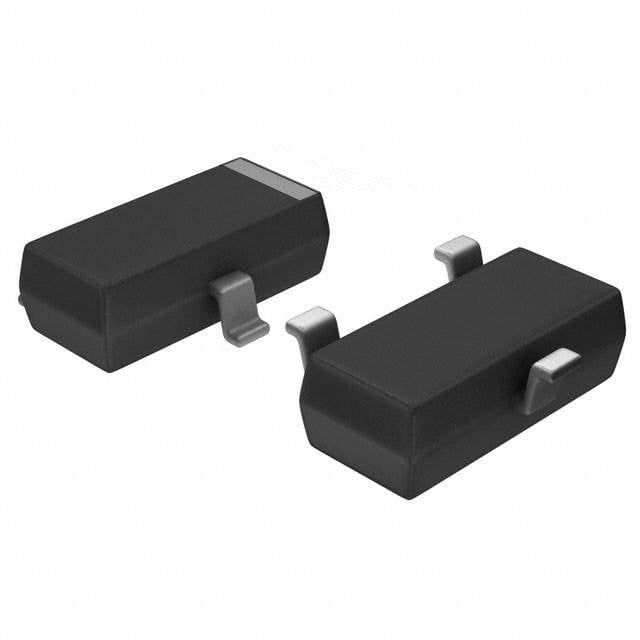

| Component Housing Style | TO-236-3, SC-59, SOT-23-3 | |
| Vendor Package Type | SOT-23-3 |
Description
Enables capacitance at voltage Vr and frequency indicated as 6.7pF @ 0V, 1MHz. Indicates the maximum allowable current rating at 350 mA. Shows the type of diode identified as Schottky - Single. Temperature range 150°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case TO-236-3, SC-59, SOT-23-3 that offers mechanical and thermal protection. Type of package SOT-23-3 that preserves the integrity of the device. The maximum power dissipation 350 mW for efficient thermal management. Product status Obsolete concerning availability and lifecycle. The resistance at designated forward current and frequency 650mOhm @ 100mA, 1MHz for precise evaluation. Supplier package type SOT-23-3 for component selection. The highest reverse peak voltage 15V for protection.
