Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 2,44,638.75000 | ₹ 2,44,638.75 |
Stock:
Distributor: 133
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 2,54,169.76000 | ₹ 2,54,169.76 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 2,68,678.54000 | ₹ 2,68,678.54 |

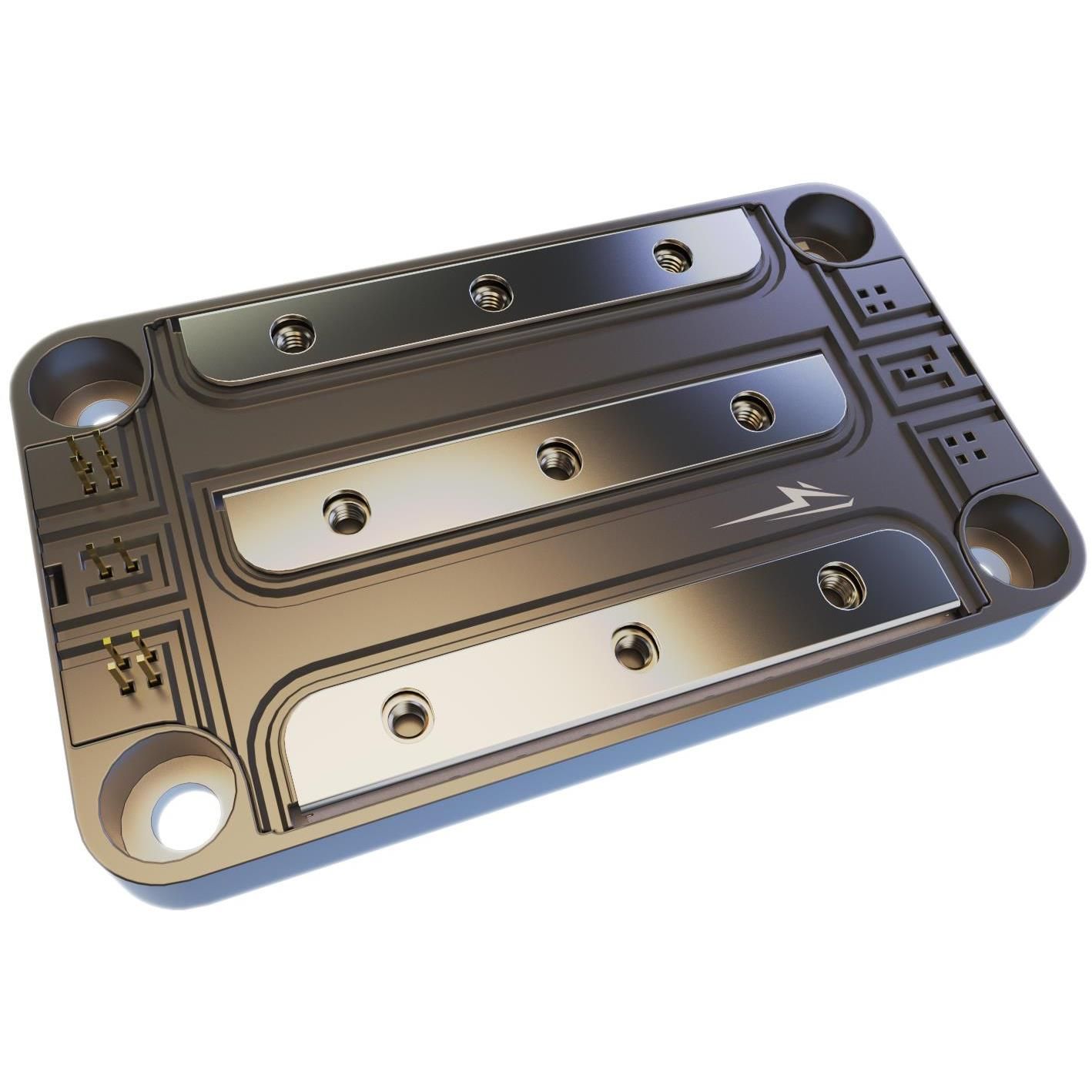

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Core Technology Platform | Silicon Carbide (SiC) | |
| Setup Arrangement | 2 N-Channel (Half Bridge) | |
| Transistor Special Function | - | |
| Drain-Source Breakdown Volts | 1200V (1.2kV) | |
| Continuous Drain Current at 25C | 1015A (Tc) | |
| Max On-State Resistance | 1.73mOhm @ 760A, 15V | |
| Max Threshold Gate Voltage | 3.6V @ 280mA | |
| Max Gate Charge at Vgs | 2724nC @ 15V | |
| Max Input Cap at Vds | 79400pF @ 800V | |
| Maximum Power Handling | - | |
| Ambient Temp Range | -40°C ~ 175°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Chassis Mount | |
| Component Housing Style | Module | |
| Vendor Package Type | Module |
Description
Configured in a manner identified as 2 N-Channel (Half Bridge). Is capable of sustaining a continuous drain current (Id) of 1015A (Tc) at 25°C. Supports a Vdss drain-to-source voltage rated at 1200V (1.2kV). Ensures maximum 2724nC @ 15V gate charge at Vgs for improved switching efficiency. Maintains 2724nC @ 15V gate charge at Vgs for dependable MOSFET operation. The maximum input capacitance reaches 79400pF @ 800V at Vds to protect the device. The input capacitance is specified at 79400pF @ 800V at Vds for peak performance. Mounting configuration Chassis Mount for structural stability. Temperature range -40°C ~ 175°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Style of the enclosure/case Module that offers mechanical and thermal protection. Type of package Module that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Maximum Rds(on) at Id 2724nC @ 15V for MOSFET performance. Maximum Rds(on) at Id and Vgs 1.73mOhm @ 760A, 15V for MOSFET specifications. Supplier package type Module for component selection. The primary technology platform Silicon Carbide (SiC) linked to the product category. Maximum Vgs(th) at Id 3.6V @ 280mA for MOSFET threshold specifications.
