Description

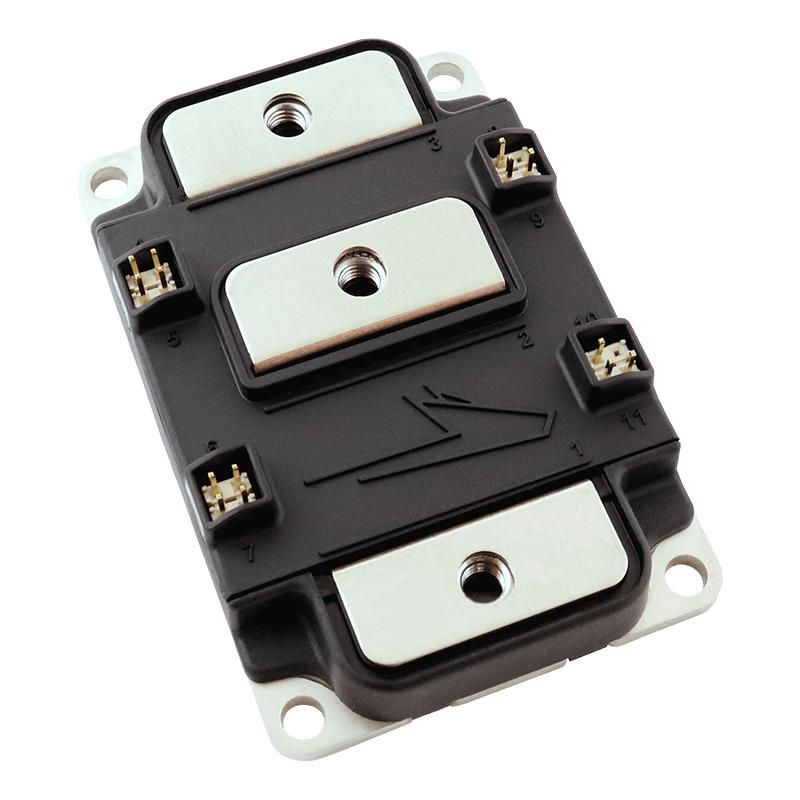

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Configured in a manner identified as 2 N-Channel (Half Bridge). Is capable of sustaining a continuous drain current (Id) of 450A at 25°C. Supports a Vdss drain-to-source voltage rated at 1200V (1.2kV). Ensures maximum 1330nC @ 15V gate charge at Vgs for improved switching efficiency. Maintains 1330nC @ 15V gate charge at Vgs for dependable MOSFET operation. The maximum input capacitance reaches 38000pF @ 800V at Vds to protect the device. The input capacitance is specified at 38000pF @ 800V at Vds for peak performance. Mounting configuration Chassis Mount for structural stability. Temperature range -40°C ~ 175°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Style of the enclosure/case Module that offers mechanical and thermal protection. Type of package Module that preserves the integrity of the device. Maximum power capability 850W for safeguarding the device. Product status Active concerning availability and lifecycle. Maximum Rds(on) at Id 1330nC @ 15V for MOSFET performance. Maximum Rds(on) at Id and Vgs 3.7mOhm @ 450A, 15V for MOSFET specifications. Supplier package type Module for component selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. The primary technology platform Silicon Carbide (SiC) linked to the product category. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Maximum Vgs(th) at Id 3.6V @ 132mA for MOSFET threshold specifications.
