Description

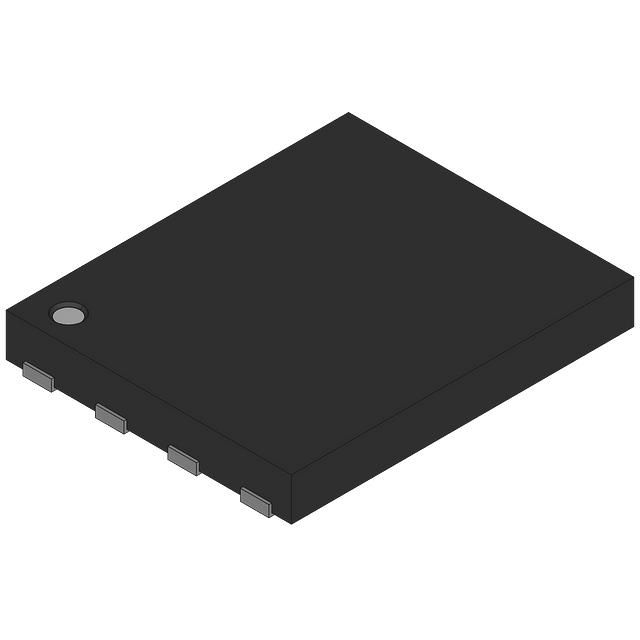

Configured in a manner identified as 2 N-Channel (Half Bridge). Is capable of sustaining a continuous drain current (Id) of 60A (Tj) at 25°C. Supports a Vdss drain-to-source voltage rated at 40V. Ensures maximum 30nC @ 10V gate charge at Vgs for improved switching efficiency. Maintains 30nC @ 10V gate charge at Vgs for dependable MOSFET operation. Evaluated as Automotive grade for quality control. The maximum input capacitance reaches 1922pF @ 25V at Vds to protect the device. The input capacitance is specified at 1922pF @ 25V at Vds for peak performance. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 175°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-PowerVDFN that offers mechanical and thermal protection. Type of package PG-TDSON-8-56 that preserves the integrity of the device. Maximum power capability 75W (Tc) for safeguarding the device. Product status Active concerning availability and lifecycle. Certification AEC-Q101 for compliance with testing or regulatory standards. Maximum Rds(on) at Id 30nC @ 10V for MOSFET performance. Maximum Rds(on) at Id and Vgs 3.1mOhm @ 30A, 10V for MOSFET specifications. Classification series for the product or component OptiMOS™ 6. Supplier package type PG-TDSON-8-56 for component selection. The primary technology platform MOSFET (Metal Oxide) linked to the product category. Maximum Vgs(th) at Id 3V @ 25µA for MOSFET threshold specifications.
