Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2010 | ₹ 144.15000 | ₹ 2,89,741.50 |
| 1020 | ₹ 145.92000 | ₹ 1,48,838.40 |
| 510 | ₹ 156.60000 | ₹ 79,866.00 |
| 120 | ₹ 185.85000 | ₹ 22,302.00 |
| 30 | ₹ 225.72000 | ₹ 6,771.60 |
| 1 | ₹ 406.66000 | ₹ 406.66 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Off-State Voltage Rating | 1.6 kV | |
| Max Gate Trigger Volts | 1.5 V | |
| Max Gate Trigger Amps | 70 mA | |
| Max On-State Voltage Drop | 1.8 V | |
| Max Average On-State Current | 35 A | |
| Max RMS On-State Current | 55 A | |
| Maximum Holding Current | 200 mA | |
| Maximum Off-State Current | 10 µA | |
| Non-Repetitive Surge 50/60Hz | 550A @ 50Hz | |
| Silicon Controlled Rectifier Style | Standard Recovery | |
| Ambient Temp Range | -40°C ~ 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

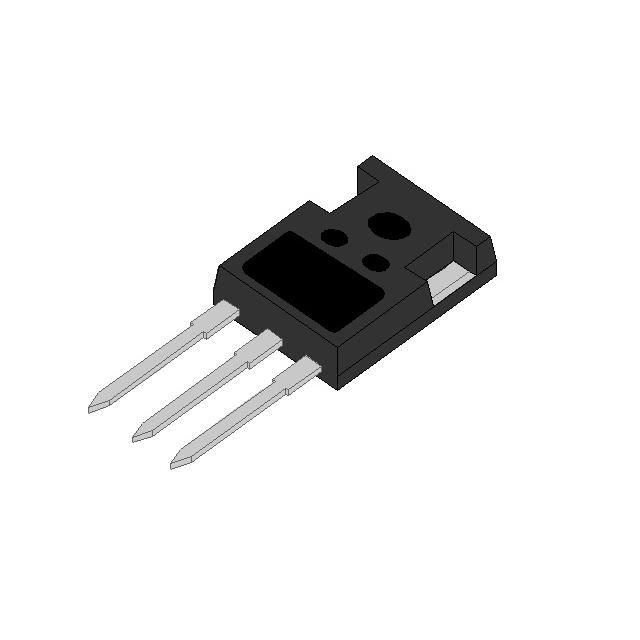

| Component Housing Style | TO-247-3 | |
| Vendor Package Type | TO-247J |
Description
Features a maximum gate trigger current (Igt) rated at 70 mA. Indicates the maximum holding current recorded at 200 mA. Is designed to manage surge current Itsm rated at 550A @ 50Hz for 50/60Hz. Features a maximum off-state current of 10 µA. Offers a maximum average on-state current It(AV) of 35 A. Supports RMS on-state current rated at 55 A. Mounting configuration Through Hole for structural stability. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case TO-247-3 that offers mechanical and thermal protection. Type of package TO-247J that preserves the integrity of the device. Product status Active concerning availability and lifecycle. The Standard Recovery SCR type for thyristor properties. Supplier package type TO-247J for component selection. Maximum gate trigger voltage 1.5 V for SCR devices. The voltage 1.6 kV when the device is not active for switches or semiconductors. The highest voltage drop Vtm 1.8 V in the active state for semiconductors.
