Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Off-State Voltage Rating | 1.2 kV | |
| Max Gate Trigger Volts | 1.5 V | |
| Max Gate Trigger Amps | 40 mA | |
| Max On-State Voltage Drop | 1.6 V | |
| Max Average On-State Current | - | |
| Max RMS On-State Current | 25 A | |
| Maximum Holding Current | 120 mA | |
| Maximum Off-State Current | 10 µA | |
| Non-Repetitive Surge 50/60Hz | 300A @ 50Hz | |
| Silicon Controlled Rectifier Style | Standard Recovery | |
| Ambient Temp Range | -40°C ~ 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

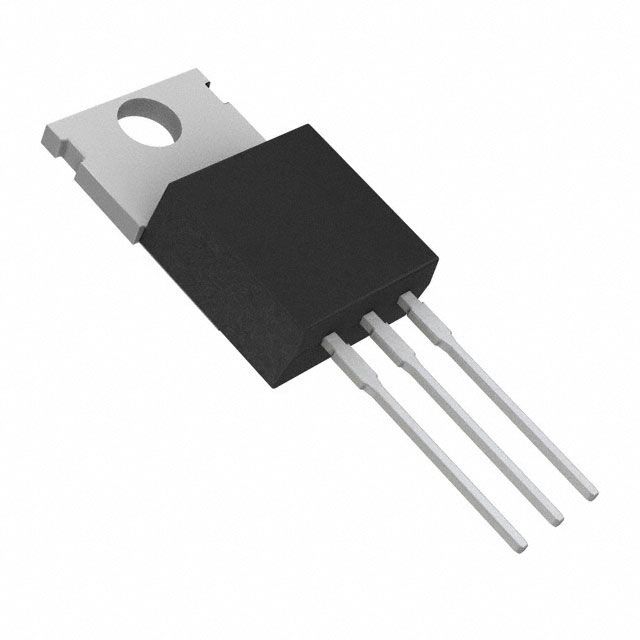

| Component Housing Style | TO-220-3 | |
| Vendor Package Type | TO-220C |
Description
Features a maximum gate trigger current (Igt) rated at 40 mA. Indicates the maximum holding current recorded at 120 mA. Is designed to manage surge current Itsm rated at 300A @ 50Hz for 50/60Hz. Features a maximum off-state current of 10 µA. Supports RMS on-state current rated at 25 A. Mounting configuration Through Hole for structural stability. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case TO-220-3 that offers mechanical and thermal protection. Type of package TO-220C that preserves the integrity of the device. Product status Active concerning availability and lifecycle. The Standard Recovery SCR type for thyristor properties. Supplier package type TO-220C for component selection. Maximum gate trigger voltage 1.5 V for SCR devices. The voltage 1.2 kV when the device is not active for switches or semiconductors. The highest voltage drop Vtm 1.6 V in the active state for semiconductors.
