Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10 | ₹ 64,905.21000 | ₹ 6,49,052.10 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Off-State Voltage Rating | 3.2 kV | |
| Max Gate Trigger Volts | 4 V | |
| Max Gate Trigger Amps | 300 mA | |
| Max On-State Voltage Drop | 1.5 V | |
| Max Average On-State Current | 3745 A | |
| Max RMS On-State Current | 5883 A | |
| Maximum Holding Current | - | |
| Maximum Off-State Current | 300 mA | |
| Non-Repetitive Surge 50/60Hz | 65600A, 70000A | |
| Silicon Controlled Rectifier Style | Standard Recovery | |
| Ambient Temp Range | -40°C ~ 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Chassis Mount | |
| Component Housing Style | TO-200AF | |

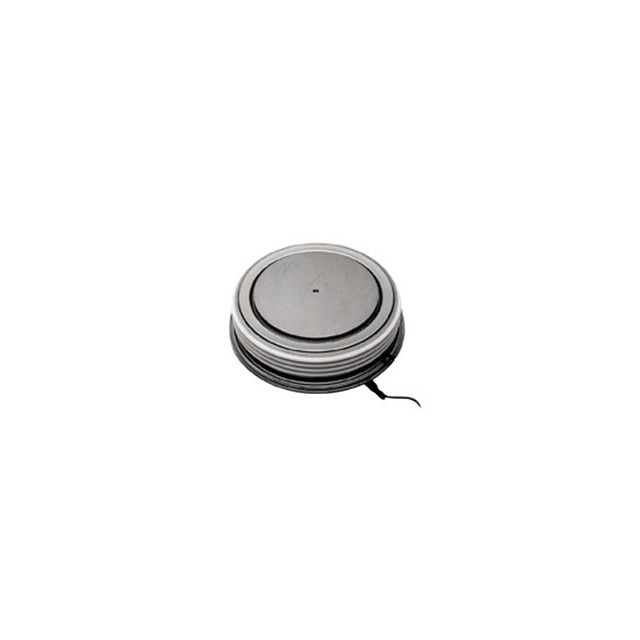

| Vendor Package Type | Hockey Puck |
Description
Features a maximum gate trigger current (Igt) rated at 300 mA. Is designed to manage surge current Itsm rated at 65600A, 70000A for 50/60Hz. Features a maximum off-state current of 300 mA. Offers a maximum average on-state current It(AV) of 3745 A. Supports RMS on-state current rated at 5883 A. Mounting configuration Chassis Mount for structural stability. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case TO-200AF that offers mechanical and thermal protection. Type of package Hockey Puck that preserves the integrity of the device. Product status Active concerning availability and lifecycle. The Standard Recovery SCR type for thyristor properties. Supplier package type Hockey Puck for component selection. Maximum gate trigger voltage 4 V for SCR devices. The voltage 3.2 kV when the device is not active for switches or semiconductors. The highest voltage drop Vtm 1.5 V in the active state for semiconductors.
