Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 30 | ₹ 29,856.70000 | ₹ 8,95,701.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Off-State Voltage Rating | 2 kV | |
| Max Gate Trigger Volts | 3 V | |
| Max Gate Trigger Amps | 120 mA | |
| Max On-State Voltage Drop | 1.45 V | |
| Max Average On-State Current | 1000 A | |
| Max RMS On-State Current | 1570 A | |
| Maximum Holding Current | - | |
| Maximum Off-State Current | 90 mA | |
| Non-Repetitive Surge 50/60Hz | 18500A, 20000A | |
| Silicon Controlled Rectifier Style | Standard Recovery | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Chassis Mount | |

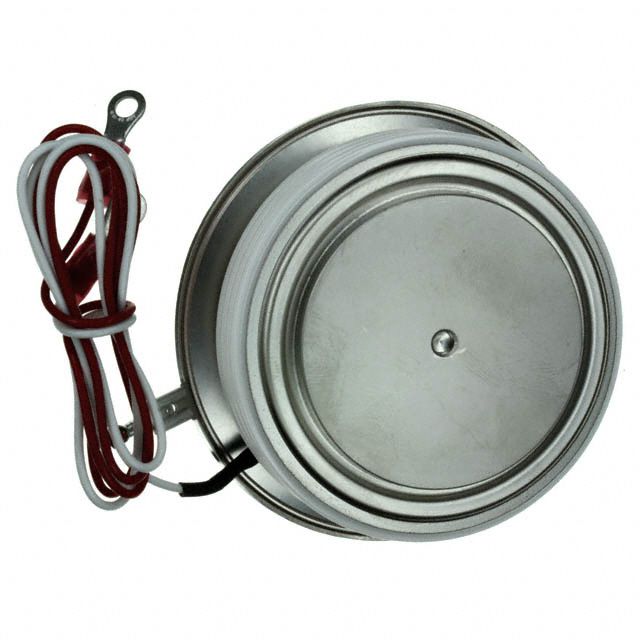

| Component Housing Style | B-PUK (TO-200AC) | |
| Vendor Package Type | Press-Pak (Pow-R-Disc) |
Description
Features a maximum gate trigger current (Igt) rated at 120 mA. Is designed to manage surge current Itsm rated at 18500A, 20000A for 50/60Hz. Features a maximum off-state current of 90 mA. Offers a maximum average on-state current It(AV) of 1000 A. Supports RMS on-state current rated at 1570 A. Mounting configuration Chassis Mount for structural stability. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case B-PUK (TO-200AC) that offers mechanical and thermal protection. Type of package Press-Pak (Pow-R-Disc) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. The Standard Recovery SCR type for thyristor properties. Supplier package type Press-Pak (Pow-R-Disc) for component selection. Maximum gate trigger voltage 3 V for SCR devices. The voltage 2 kV when the device is not active for switches or semiconductors. The highest voltage drop Vtm 1.45 V in the active state for semiconductors.
