Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Off-State Voltage Rating | 250 V | |
| Max Gate Trigger Volts | 800 mV | |
| Max Gate Trigger Amps | 20 µA | |
| Max On-State Voltage Drop | 2.2 V | |
| Max Average On-State Current | 1.6 A | |
| Max RMS On-State Current | - | |
| Maximum Holding Current | 2 A | |
| Maximum Off-State Current | - | |
| Non-Repetitive Surge 50/60Hz | 15A @ 60Hz | |
| Silicon Controlled Rectifier Style | Standard Recovery | |
| Ambient Temp Range | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

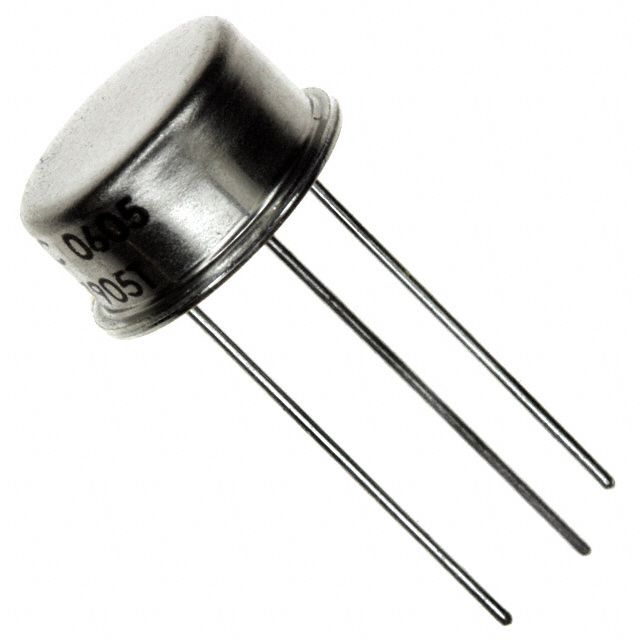

| Component Housing Style | TO-205AD, TO-39-3 Metal Can | |
| Vendor Package Type | TO-39 (TO-205AD) |
Description
Features a maximum gate trigger current (Igt) rated at 20 µA. Indicates the maximum holding current recorded at 2 A. Is designed to manage surge current Itsm rated at 15A @ 60Hz for 50/60Hz. Offers a maximum average on-state current It(AV) of 1.6 A. Mounting configuration Through Hole for structural stability. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case TO-205AD, TO-39-3 Metal Can that offers mechanical and thermal protection. Type of package TO-39 (TO-205AD) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. The Standard Recovery SCR type for thyristor properties. Supplier package type TO-39 (TO-205AD) for component selection. Maximum gate trigger voltage 800 mV for SCR devices. The voltage 250 V when the device is not active for switches or semiconductors. The highest voltage drop Vtm 2.2 V in the active state for semiconductors.
