Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 69,883.89000 | ₹ 69,88,389.00 |
| 50 | ₹ 70,922.24000 | ₹ 35,46,112.00 |
| 30 | ₹ 71,960.59000 | ₹ 21,58,817.70 |
| 10 | ₹ 72,998.94000 | ₹ 7,29,989.40 |
| 1 | ₹ 73,628.24000 | ₹ 73,628.24 |
Stock:
Distributor: 122
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 76,304.15000 | ₹ 76,304.15 |
Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 76,304.15000 | ₹ 76,304.15 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 77,640.04000 | ₹ 77,640.04 |
Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 78,160.52000 | ₹ 78,160.52 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 78,627.28000 | ₹ 78,627.28 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Off-State Voltage Rating | 2.8 kV | |
| Max Gate Trigger Volts | 2.5 V | |
| Max Gate Trigger Amps | 250 mA | |
| Max On-State Voltage Drop | 1.79 V | |
| Max Average On-State Current | 3900 A | |
| Max RMS On-State Current | 6120 A | |
| Maximum Holding Current | 300 mA | |
| Maximum Off-State Current | 250 mA | |
| Non-Repetitive Surge 50/60Hz | 47500A @ 50Hz | |
| Silicon Controlled Rectifier Style | Standard Recovery | |
| Ambient Temp Range | 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Chassis Mount | |
| Component Housing Style | TO-200AF | |
| Vendor Package Type | BG-T12026K-1 |

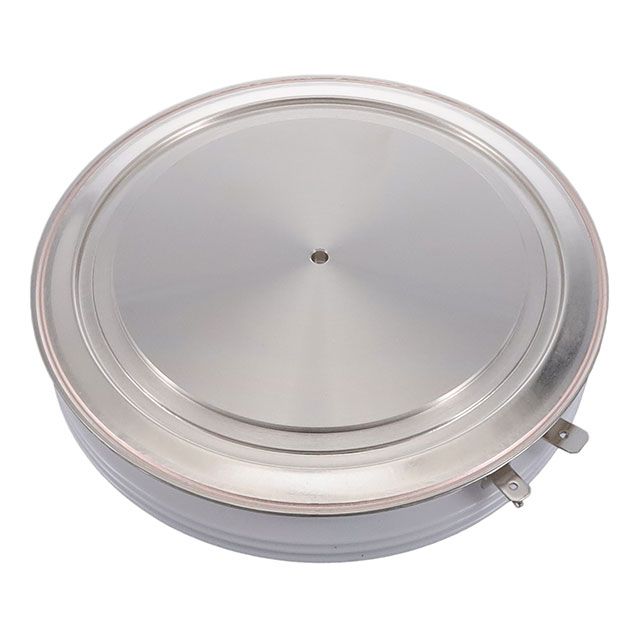

Description
Features a maximum gate trigger current (Igt) rated at 250 mA. Indicates the maximum holding current recorded at 300 mA. Is designed to manage surge current Itsm rated at 47500A @ 50Hz for 50/60Hz. Features a maximum off-state current of 250 mA. Offers a maximum average on-state current It(AV) of 3900 A. Supports RMS on-state current rated at 6120 A. Mounting configuration Chassis Mount for structural stability. Temperature range 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case TO-200AF that offers mechanical and thermal protection. Type of package BG-T12026K-1 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. The Standard Recovery SCR type for thyristor properties. Supplier package type BG-T12026K-1 for component selection. Maximum gate trigger voltage 2.5 V for SCR devices. The voltage 2.8 kV when the device is not active for switches or semiconductors. The highest voltage drop Vtm 1.79 V in the active state for semiconductors.
