Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | XCL225 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Device Type Classification | Non-Isolated PoL Module | |
| Signal Output Quantity | 1 | |
| Minimum Input Voltage | 3V | |
| Maximum Input Voltage | 18V | |
| First Rail Output Volts | 1 ~ 15V | |
| Second Rail Output Volts | - | |
| Third Rail Output Volts | - | |
| Fourth Rail Output Volts | - | |
| Peak Output Current | 500mA | |
| Wattage Power Level | - | |
| Isolation Barrier Voltage | - | |
| Intended Uses | ITE (Commercial) | |
| Key Product Highlights | OCP, OTP, UVLO | |
| Ambient Temp Range | -40°C ~ 105°C | |
| Performance Efficiency Rating | 82% | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

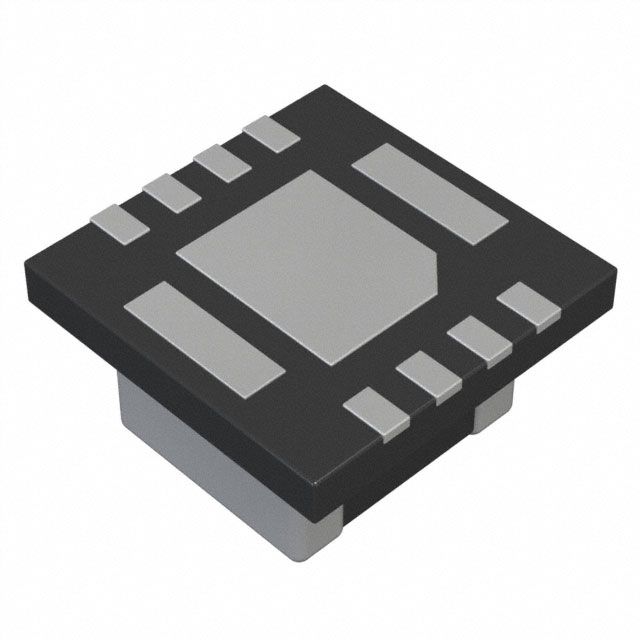

| Component Housing Style | 10-PowerLFDFN Module | |
| Package Size Specs | 0.12" L x 0.12" W x 0.07" H (3.0mm x 3.0mm x 1.7mm) | |
| Vendor Package Type | DFN3030-10B | |
| Adjustment Capabilities | - | |
| Certification Body | - | |
| Compliance Standard ID | - |
Description
Perfectly designed for situations involving ITE (Commercial). Supplies peak output current defined as 500mA. Offers an efficiency rating calculated at 82%. Equipped with features categorized as OCP, OTP, UVLO. The input voltage established at 3V for reliable performance. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Voltage 1 ~ 15V for optimal output electric potential. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 10-PowerLFDFN Module that offers mechanical and thermal protection. Type of package DFN3030-10B that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component XCL225. Details on package size 0.12" L x 0.12" W x 0.07" H (3.0mm x 3.0mm x 1.7mm) for electrical or mechanical components. Measurement dimensions 0.12" L x 0.12" W x 0.07" H (3.0mm x 3.0mm x 1.7mm) for component specifications. Supplier package type DFN3030-10B for component selection. Type classification Non-Isolated PoL Module for specifications. Maximum input voltage 18V for safeguarding. Minimum input voltage 3V for operation. Output 1 voltage 1 ~ 15V across different outputs.
