Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Ag9900 | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |

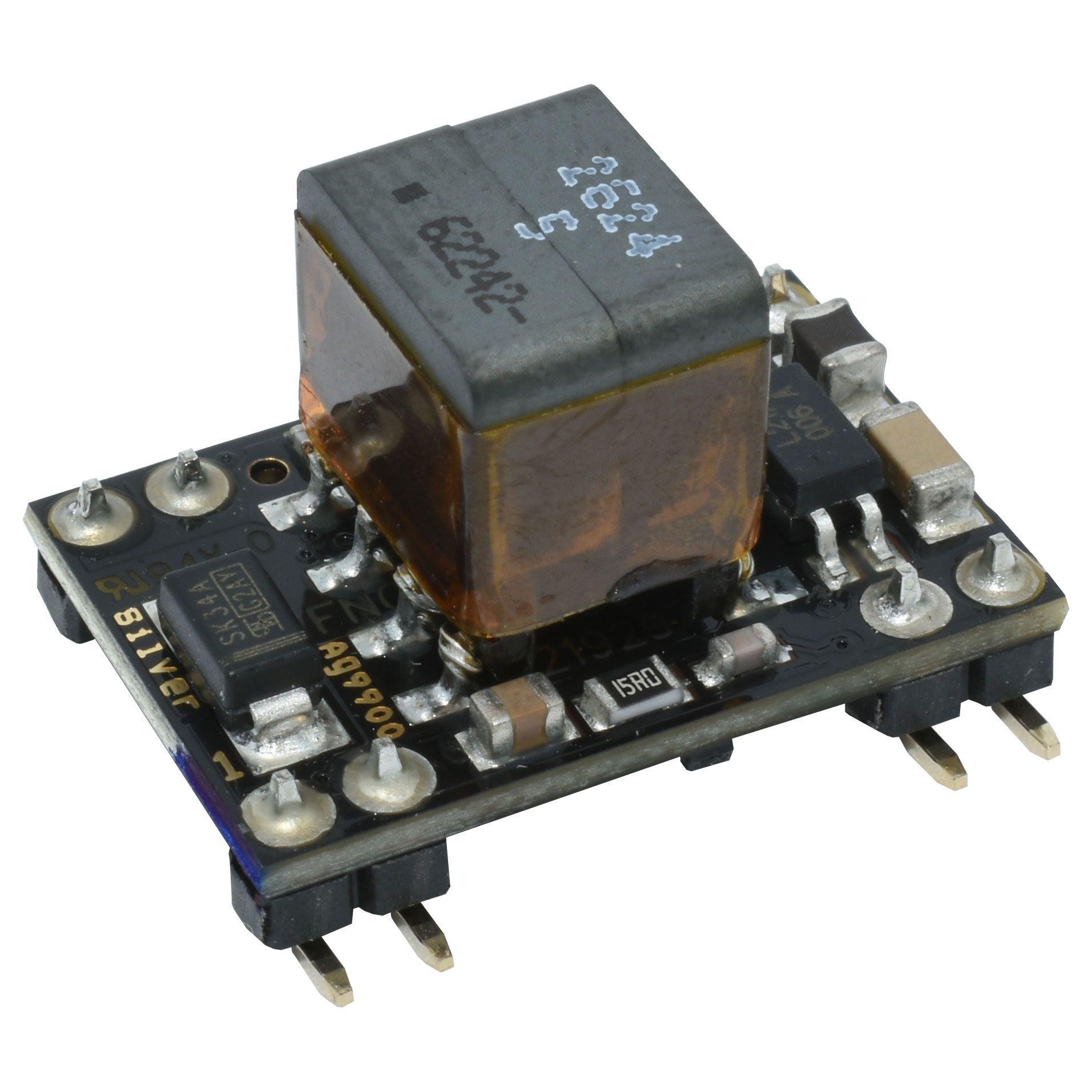

| Device Type Classification | Isolated PoE (Power over Ethernet) Module | |
| Signal Output Quantity | 1 | |
| Minimum Input Voltage | 36V | |
| Maximum Input Voltage | 57V | |
| First Rail Output Volts | 5V | |
| Second Rail Output Volts | - | |
| Third Rail Output Volts | - | |
| Fourth Rail Output Volts | - | |
| Peak Output Current | 1.8A | |
| Wattage Power Level | 12 W | |
| Isolation Barrier Voltage | 1.5 kV | |
| Intended Uses | ITE (Commercial) | |
| Key Product Highlights | Adjustable Output | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Performance Efficiency Rating | 83% | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 8-SMD Module | |
| Package Size Specs | 0.85" L x 0.57" W x 0.56" H (21.7mm x 14.4mm x 14.3mm) | |
| Vendor Package Type | - | |
| Adjustment Capabilities | - | |
| Certification Body | - | |
| Compliance Standard ID | 60950-1 |
Description
Perfectly designed for situations involving ITE (Commercial). Supplies peak output current defined as 1.8A. Offers an efficiency rating calculated at 83%. Equipped with features categorized as Adjustable Output. The input voltage established at 36V for reliable performance. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Voltage 5V for optimal output electric potential. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 8-SMD Module that offers mechanical and thermal protection. Power measured in watts 12 W for optimal operation. Product status Active concerning availability and lifecycle. Classification series for the product or component Ag9900. Details on package size 0.85" L x 0.57" W x 0.56" H (21.7mm x 14.4mm x 14.3mm) for electrical or mechanical components. Measurement dimensions 0.85" L x 0.57" W x 0.56" H (21.7mm x 14.4mm x 14.3mm) for component specifications. Standard compliance code 60950-1 for regulations. Type classification Isolated PoE (Power over Ethernet) Module for specifications. Maximum input voltage 57V for safeguarding. Minimum input voltage 36V for operation. Isolation voltage 1.5 kV for electrical safety. Output 1 voltage 5V across different outputs.
