Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Ag53000 | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |

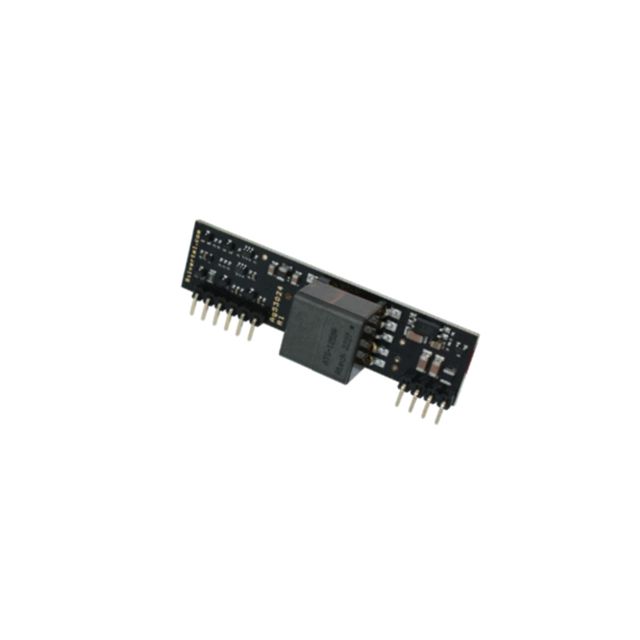

| Device Type Classification | Isolated PoE (Power over Ethernet) Module | |
| Signal Output Quantity | 1 | |
| Minimum Input Voltage | 41V | |
| Maximum Input Voltage | 57V | |
| First Rail Output Volts | 24V | |
| Second Rail Output Volts | - | |
| Third Rail Output Volts | - | |
| Fourth Rail Output Volts | - | |
| Peak Output Current | 1A | |
| Wattage Power Level | 24 W | |
| Isolation Barrier Voltage | 1.5 kV | |
| Intended Uses | ITE (Commercial) | |
| Key Product Highlights | Adjustable Output | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Performance Efficiency Rating | 90% | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | 10-SIP Module | |
| Package Size Specs | 2.26" L x 0.68" W x 0.55" H (57.3mm x 17.4mm x 14.0mm) | |
| Vendor Package Type | - | |
| Adjustment Capabilities | - | |
| Certification Body | - | |
| Compliance Standard ID | 60950-1 |
Description
Perfectly designed for situations involving ITE (Commercial). Supplies peak output current defined as 1A. Offers an efficiency rating calculated at 90%. Equipped with features categorized as Adjustable Output. The input voltage established at 41V for reliable performance. Mounting configuration Through Hole for structural stability. Overall outputs 1 for device connections. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Voltage 24V for optimal output electric potential. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 10-SIP Module that offers mechanical and thermal protection. Power measured in watts 24 W for optimal operation. Product status Active concerning availability and lifecycle. Classification series for the product or component Ag53000. Details on package size 2.26" L x 0.68" W x 0.55" H (57.3mm x 17.4mm x 14.0mm) for electrical or mechanical components. Measurement dimensions 2.26" L x 0.68" W x 0.55" H (57.3mm x 17.4mm x 14.0mm) for component specifications. Standard compliance code 60950-1 for regulations. Type classification Isolated PoE (Power over Ethernet) Module for specifications. Maximum input voltage 57V for safeguarding. Minimum input voltage 41V for operation. Isolation voltage 1.5 kV for electrical safety. Output 1 voltage 24V across different outputs.
