Stock:
Distributor: 114
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 5,341.78000 | ₹ 5,341.78 |
| 10 | ₹ 5,261.68000 | ₹ 52,616.80 |
| 20 | ₹ 5,183.36000 | ₹ 1,03,667.20 |
| 40 | ₹ 5,106.82000 | ₹ 2,04,272.80 |
| 75 | ₹ 4,960.86000 | ₹ 3,72,064.50 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |

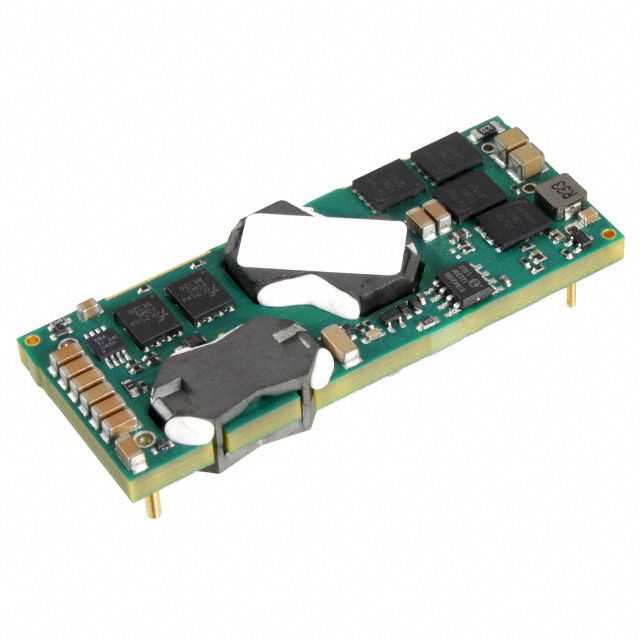

| Product Series Line | RBE-12/20-D48 (240W) | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Device Type Classification | Isolated Module | |
| Signal Output Quantity | 1 | |
| Minimum Input Voltage | 36V | |
| Maximum Input Voltage | 75V | |
| First Rail Output Volts | 12V | |
| Second Rail Output Volts | - | |
| Third Rail Output Volts | - | |
| Fourth Rail Output Volts | - | |
| Peak Output Current | 20A | |
| Wattage Power Level | 240 W | |
| Isolation Barrier Voltage | 2.25 kV | |
| Intended Uses | ITE (Commercial) | |
| Key Product Highlights | OCP, OTP, SCP, UVLO | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Performance Efficiency Rating | 94.5% | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | 8-DIP Module, 5 Leads, 1/8 Brick | |
| Package Size Specs | 2.30" L x 0.90" W x 0.40" H (58.4mm x 22.9mm x 10.2mm) | |
| Vendor Package Type | - | |
| Adjustment Capabilities | - | |
| Certification Body | - | |
| Compliance Standard ID | - |
Description
Perfectly designed for situations involving ITE (Commercial). Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supplies peak output current defined as 20A. Offers an efficiency rating calculated at 94.5%. Equipped with features categorized as OCP, OTP, SCP, UVLO. The input voltage established at 36V for reliable performance. Mounting configuration Through Hole for structural stability. Overall outputs 1 for device connections. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Voltage 12V for optimal output electric potential. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 8-DIP Module, 5 Leads, 1/8 Brick that offers mechanical and thermal protection. Power measured in watts 240 W for optimal operation. Product status Active concerning availability and lifecycle. Classification series for the product or component RBE-12/20-D48 (240W). Details on package size 2.30" L x 0.90" W x 0.40" H (58.4mm x 22.9mm x 10.2mm) for electrical or mechanical components. Measurement dimensions 2.30" L x 0.90" W x 0.40" H (58.4mm x 22.9mm x 10.2mm) for component specifications. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type classification Isolated Module for specifications. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Maximum input voltage 75V for safeguarding. Minimum input voltage 36V for operation. Isolation voltage 2.25 kV for electrical safety. Output 1 voltage 12V across different outputs.
