Stock:
Distributor: 140
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5000 | ₹ 126.38000 | ₹ 6,31,900.00 |
| 1000 | ₹ 132.61000 | ₹ 1,32,610.00 |
| 100 | ₹ 143.29000 | ₹ 14,329.00 |
| 25 | ₹ 159.31000 | ₹ 3,982.75 |
| 1 | ₹ 190.46000 | ₹ 190.46 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | HyperLight Load® | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Device Type Classification | Non-Isolated PoL Module | |
| Signal Output Quantity | 1 | |
| Minimum Input Voltage | 2.7V | |
| Maximum Input Voltage | 5.5V | |
| First Rail Output Volts | 3.3V | |
| Second Rail Output Volts | - | |
| Third Rail Output Volts | - | |
| Fourth Rail Output Volts | - | |
| Peak Output Current | 1.2A | |
| Wattage Power Level | - | |
| Isolation Barrier Voltage | - | |
| Intended Uses | ITE (Commercial) | |
| Key Product Highlights | Remote On/Off | |
| Ambient Temp Range | -40°C ~ 125°C (TJ) | |
| Performance Efficiency Rating | 93% | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

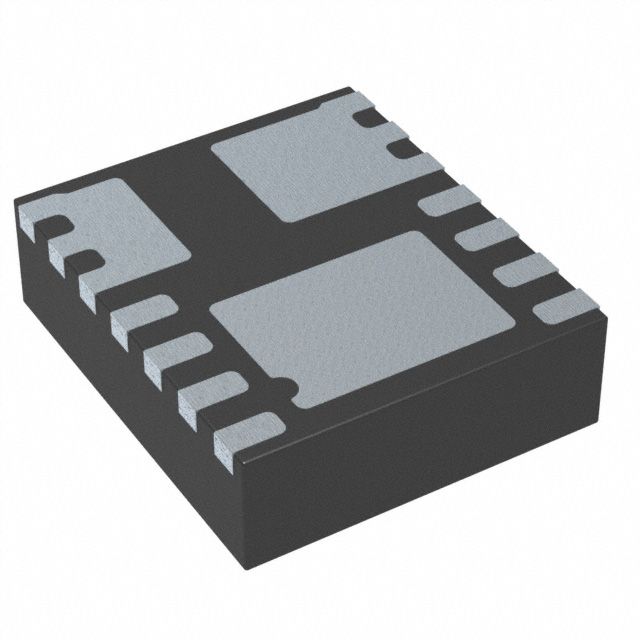

| Component Housing Style | 14-PowerTFDFN | |
| Package Size Specs | 0.12" L x 0.14" W x 0.04" H (3.0mm x 3.5mm x 1.1mm) | |
| Vendor Package Type | 14-TDFN (3x3.5) | |
| Adjustment Capabilities | - | |
| Certification Body | - | |
| Compliance Standard ID | - |
Description
Perfectly designed for situations involving ITE (Commercial). Supplies peak output current defined as 1.2A. Offers an efficiency rating calculated at 93%. Equipped with features categorized as Remote On/Off. The input voltage established at 2.7V for reliable performance. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Voltage 3.3V for optimal output electric potential. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 14-PowerTFDFN that offers mechanical and thermal protection. Type of package 14-TDFN (3x3.5) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component HyperLight Load®. Details on package size 0.12" L x 0.14" W x 0.04" H (3.0mm x 3.5mm x 1.1mm) for electrical or mechanical components. Measurement dimensions 0.12" L x 0.14" W x 0.04" H (3.0mm x 3.5mm x 1.1mm) for component specifications. Supplier package type 14-TDFN (3x3.5) for component selection. Type classification Non-Isolated PoL Module for specifications. Maximum input voltage 5.5V for safeguarding. Minimum input voltage 2.7V for operation. Output 1 voltage 3.3V across different outputs.
