Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

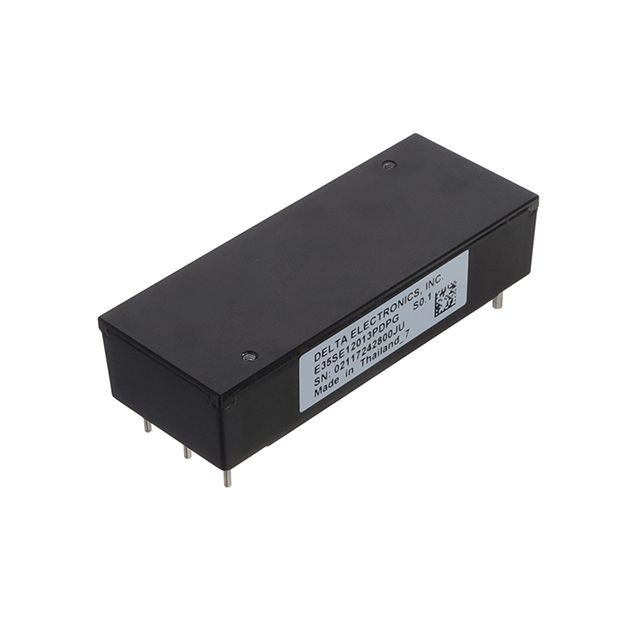

| Product Series Line | E35SE (150W) | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Device Type Classification | Isolated Module | |
| Signal Output Quantity | 1 | |
| Minimum Input Voltage | 9V | |
| Maximum Input Voltage | 60V | |
| First Rail Output Volts | 12V | |
| Second Rail Output Volts | - | |
| Third Rail Output Volts | - | |
| Fourth Rail Output Volts | - | |
| Peak Output Current | 13A | |
| Wattage Power Level | 156 W | |
| Isolation Barrier Voltage | 4.242 kV | |
| Intended Uses | ITE (Commercial), Railway | |
| Key Product Highlights | Adjustable Output, Remote On/Off, Remote Sense | |
| Ambient Temp Range | -40°C ~ 85°C (With Derating) | |
| Performance Efficiency Rating | 91% | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | Eighth Brick | |
| Package Size Specs | 2.30" L x 0.90" W x 0.53" H (58.4mm x 22.8mm x 13.5mm) | |
| Vendor Package Type | Eighth Brick | |
| Adjustment Capabilities | Enable, Active High | |
| Certification Body | CSA, EN, IEC, UL | |
| Compliance Standard ID | 50155; 60950-1; 62368-1 |
Description
Perfectly designed for situations involving ITE (Commercial), Railway. Complies with the criteria of entities acknowledged as CSA, EN, IEC, UL. Is equipped with control features recognized as Enable, Active High. Supplies peak output current defined as 13A. Offers an efficiency rating calculated at 91%. Equipped with features categorized as Adjustable Output, Remote On/Off, Remote Sense. The input voltage established at 9V for reliable performance. Mounting configuration Through Hole for structural stability. Overall outputs 1 for device connections. Temperature range -40°C ~ 85°C (With Derating) for environmental conditions impacting thermal efficiency. Voltage 12V for optimal output electric potential. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case Eighth Brick that offers mechanical and thermal protection. Type of package Eighth Brick that preserves the integrity of the device. Power measured in watts 156 W for optimal operation. Product status Active concerning availability and lifecycle. Classification series for the product or component E35SE (150W). Details on package size 2.30" L x 0.90" W x 0.53" H (58.4mm x 22.8mm x 13.5mm) for electrical or mechanical components. Measurement dimensions 2.30" L x 0.90" W x 0.53" H (58.4mm x 22.8mm x 13.5mm) for component specifications. Standard compliance code 50155; 60950-1; 62368-1 for regulations. Supplier package type Eighth Brick for component selection. Type classification Isolated Module for specifications. Maximum input voltage 60V for safeguarding. Minimum input voltage 9V for operation. Isolation voltage 4.242 kV for electrical safety. Output 1 voltage 12V across different outputs.
