Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

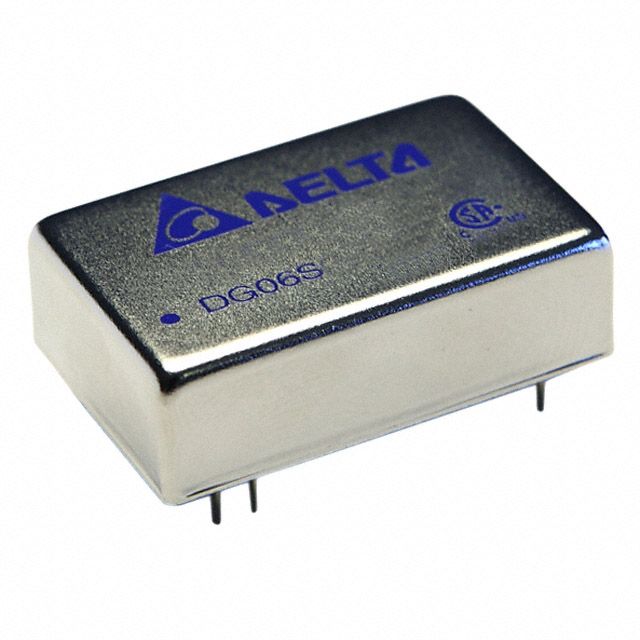

| Product Series Line | DG06S/D (6W) | |
| IC Encapsulation Type | Tube | |
| Availability Status | Not For New Designs | |
| Device Type Classification | Isolated Module | |
| Signal Output Quantity | 2 | |
| Minimum Input Voltage | 4.5V | |
| Maximum Input Voltage | 7V | |
| First Rail Output Volts | 15V | |
| Second Rail Output Volts | -15V | |
| Third Rail Output Volts | - | |
| Fourth Rail Output Volts | - | |
| Peak Output Current | 200mA, 200mA | |
| Wattage Power Level | 6 W | |
| Isolation Barrier Voltage | 1.5 kV | |
| Intended Uses | Medical | |
| Key Product Highlights | OCP, SCP, UVLO | |
| Ambient Temp Range | -40°C ~ 71°C | |
| Performance Efficiency Rating | 82% | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | 24-DIP Module, 8 Leads | |
| Package Size Specs | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | |
| Vendor Package Type | - | |
| Adjustment Capabilities | - | |
| Certification Body | - | |
| Compliance Standard ID | - |
Description
Perfectly designed for situations involving Medical. Supplies peak output current defined as 200mA, 200mA. Offers an efficiency rating calculated at 82%. Equipped with features categorized as OCP, SCP, UVLO. The input voltage established at 4.5V for reliable performance. Mounting configuration Through Hole for structural stability. Overall outputs 2 for device connections. Temperature range -40°C ~ 71°C for environmental conditions impacting thermal efficiency. Voltage 15V for optimal output electric potential. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 24-DIP Module, 8 Leads that offers mechanical and thermal protection. Power measured in watts 6 W for optimal operation. Product status Not For New Designs concerning availability and lifecycle. Classification series for the product or component DG06S/D (6W). Details on package size 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) for electrical or mechanical components. Measurement dimensions 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) for component specifications. Type classification Isolated Module for specifications. Maximum input voltage 7V for safeguarding. Minimum input voltage 4.5V for operation. Isolation voltage 1.5 kV for electrical safety. Output 1 voltage 15V across different outputs. Output 2 voltage -15V across different outputs.
