Product Attributes

Type	Description	Select All
Category	Cooling Fans Heat Sinks and Thermal Solutions Thermal Pads
Import Duty Classification	-
Product Series Line	Q-Bridge
IC Encapsulation Type	Tape & Reel (TR)Cut Tape (CT)
Intended Usage Scenario	Heat Transfer

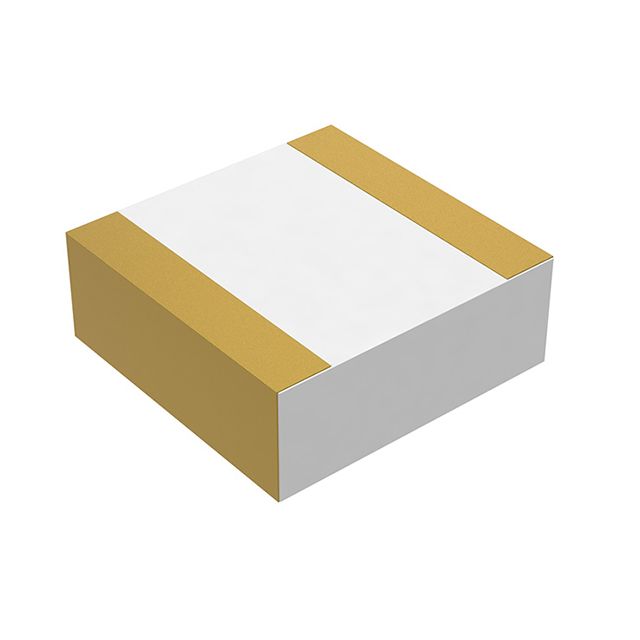

Device Type Classification	Thermal Bridge Jumper
Physical Shape Form	Square
Dimensional Outline Drawing	2.79mm x 2.79mm
Material Thickness Gauge	0.0402" (1.020mm)
Construction Material Type	Aluminum Nitride
Bonding Agent Type	-
Support Layer Material	-
Visual Hue	-
Material Heat Resistance	4°C/W, 7°C/W
Heat Transfer Coefficient	153W/m-K, 340W/m-K

Description

Type of construction material Aluminum Nitride for durability and efficiency. Shape outline 2.79mm x 2.79mm for device design and footprint. Type of housing Tape & Reel (TR)Cut Tape (CT) for safeguarding or transporting components. Classification series for the product or component Q-Bridge. Shape Square for the part or device. Thermal conductivity coefficient 153W/m-K, 340W/m-K for effective heat transfer. Thermal resistivity measurement 4°C/W, 7°C/W for material insulation effectiveness. Measurement of thickness 0.0402" (1.020mm) for material or component dimensions. Type classification Thermal Bridge Jumper for specifications. Application Heat Transfer for defined purpose or objective.
