Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bag | |
| Availability Status | Active | |

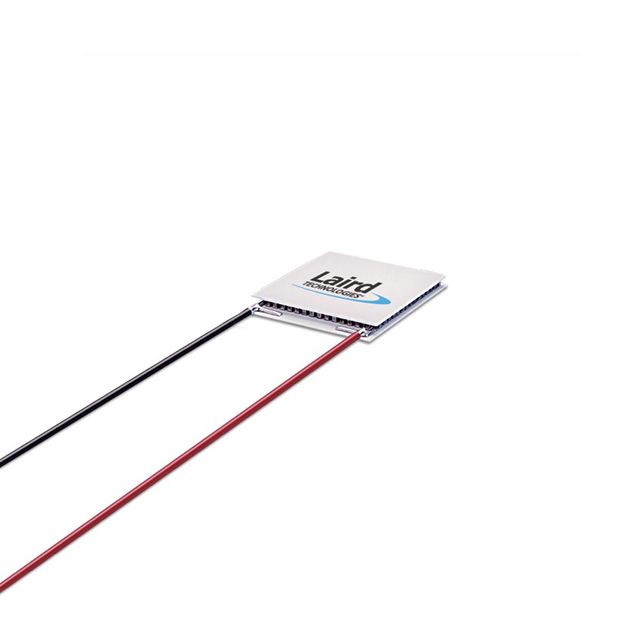

| Device Type Classification | TEC (Thermoelectric Cooler) | |
| Package Size Specs | Square - 40.00mm L x 40.00mm W | |
| Max Q at Holding Temp | 125.0W @ 25°C | |
| Max Temperature Delta at Holding | 73°C @ 25°C | |
| Vertical Dimension | 3.71mm | |
| Amplifier Stage Count | 1 | |
| Maximum Amp Rating | 5 A | |
| Peak Voltage Tolerance | 20 V | |
| Ohm Resistance Value | 3.32 Ohms | |
| Ambient Temp Range | - | |
| Key Product Highlights | Lead Wires, Non-Sealed |
Description
Indicates the maximum allowable current rating at 5 A. Reflects the Tmax variation at Th noted as 73°C @ 25°C. Equipped with features categorized as Lead Wires, Non-Sealed. Features a height of 3.71mm for accurate dimensional precision. Overall stages 1 for systems or circuits with several phases. Type of housing Bag for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Maximum Q at specified temperature threshold 125.0W @ 25°C for component specifications. Resistance value 3.32 Ohms for electrical performance. Details on package size Square - 40.00mm L x 40.00mm W for electrical or mechanical components. Measurement dimensions Square - 40.00mm L x 40.00mm W for component specifications. Type classification TEC (Thermoelectric Cooler) for specifications. The maximum voltage 20 V specified by the device.
