Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 2,874.99000 | ₹ 2,87,499.00 |
| 50 | ₹ 2,953.28000 | ₹ 1,47,664.00 |
| 25 | ₹ 3,033.68000 | ₹ 75,842.00 |
| 10 | ₹ 3,143.40000 | ₹ 31,434.00 |
| 5 | ₹ 3,229.07000 | ₹ 16,145.35 |
| 1 | ₹ 3,437.41000 | ₹ 3,437.41 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | ATE1 | |
| Availability Status | Active | |

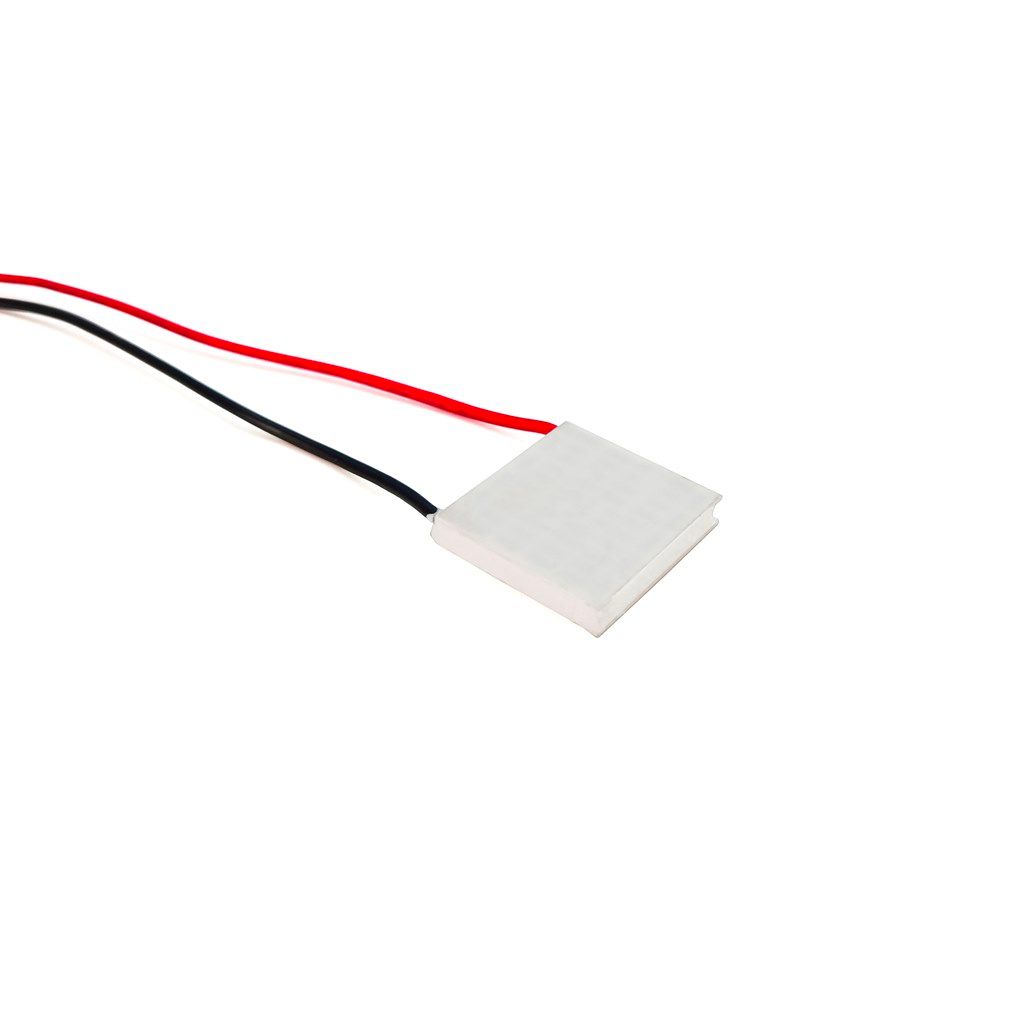

| Device Type Classification | TEC (Thermoelectric Cooler) | |
| Package Size Specs | Square - 30.00mm L x 30.00mm W | |
| Max Q at Holding Temp | 33.4W @ 68°C | |
| Max Temperature Delta at Holding | 65°C @ 68°C | |
| Vertical Dimension | 3.20mm | |
| Amplifier Stage Count | 1 | |
| Maximum Amp Rating | 4 A | |
| Peak Voltage Tolerance | 15.4 V | |
| Ohm Resistance Value | - | |
| Ambient Temp Range | 85°C | |
| Key Product Highlights | Lead Wires, Sealed |
Description
Indicates the maximum allowable current rating at 4 A. Reflects the Tmax variation at Th noted as 65°C @ 68°C. Equipped with features categorized as Lead Wires, Sealed. Features a height of 3.20mm for accurate dimensional precision. Overall stages 1 for systems or circuits with several phases. Temperature range 85°C for environmental conditions impacting thermal efficiency. Product status Active concerning availability and lifecycle. Maximum Q at specified temperature threshold 33.4W @ 68°C for component specifications. Classification series for the product or component ATE1. Details on package size Square - 30.00mm L x 30.00mm W for electrical or mechanical components. Measurement dimensions Square - 30.00mm L x 30.00mm W for component specifications. Type classification TEC (Thermoelectric Cooler) for specifications. The maximum voltage 15.4 V specified by the device.
